Technical parameters specifications
Number of poles CKT:13pin to 71pin
Rated current:0.2AAC/DC
Rated voltage Rated voltage(max):30V,AC/DC
Operating TemperatureOperating Temperature:-25℃~+85℃
(Including power-on temperature rise value)
(Including power-on temperature rise)
Contact resistanceContact
resistance: initial initial value
s40mΩAfter environmental testing s60mΩ
Insulation resistanceInsulation resistance: 250MΩ
withstand voltage: 500VAC (RMS)
Applicable substrate thickness
Applicable PCB board thickness: 1.6 mm to 2.0 mm

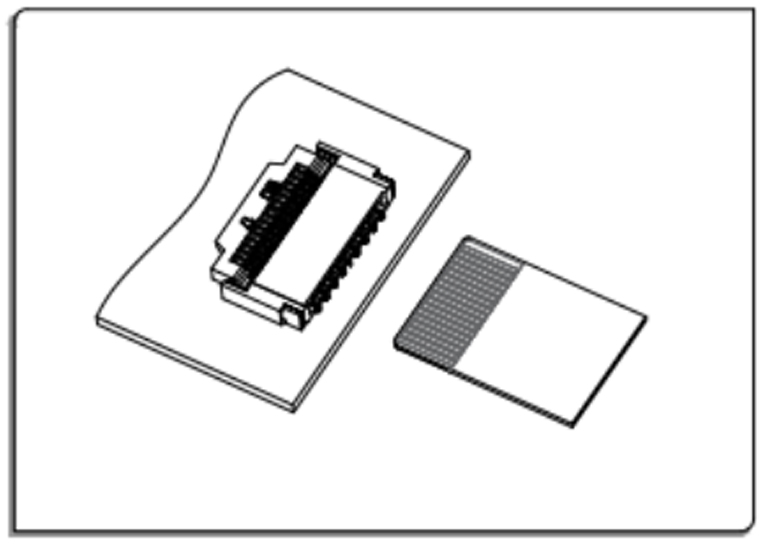

younting Measurement

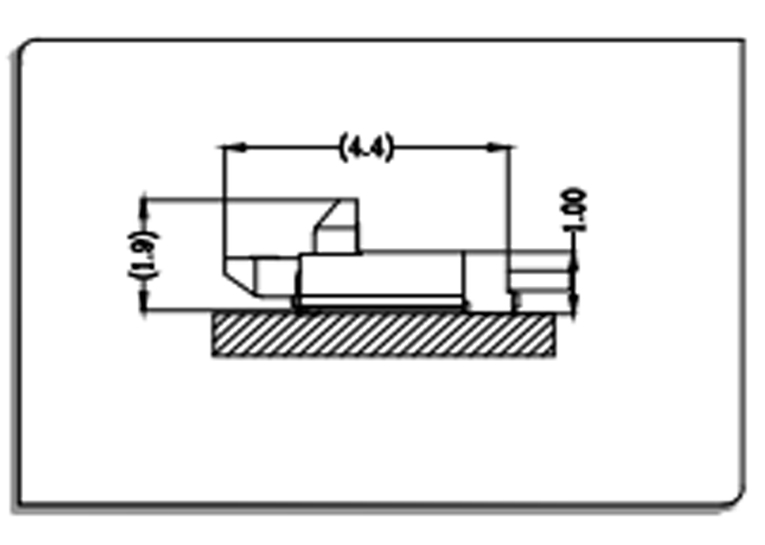

Assonoly layout

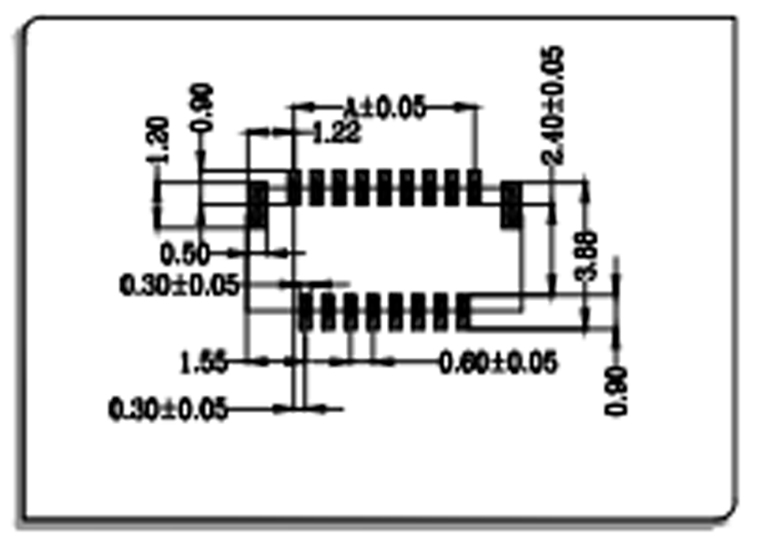

P.C.h lagest

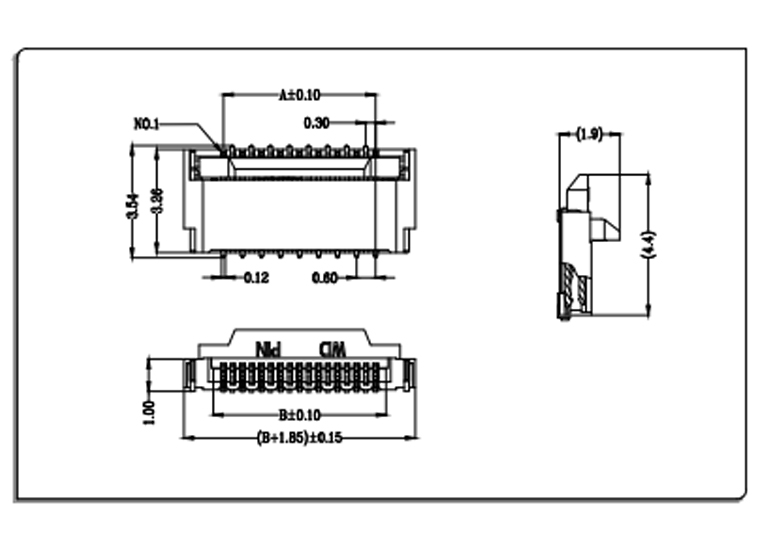

Bck Flip R/A
Naterialand Finishe Housing:LCPU9-0& Terninal:phosphor brone &Fitting:phosphor bronze: Finish:Tinplated & Gold-plated
| CKT | Part No | DIM A | DIN B |
| 13 | HW03102-13 | 3.6 | 4.25 |
| 15 | HN03102-15 | 4.2 | 4.85 |
| 17 | HWO3102-17 | 4.8 | 5.45 |
| 19 | HN03102-19 | 5.4 | 6.05 |
| 21 | HW03102-21 | 6 | 6.65 |
| 23 | HW03102-23 | 6.6 | 7.25 |
| 25 | HW03102-25 | 7.2 | 7.85 |
| 27 | HN03102-27 | 7.8 | 8.45 |
| 29 | HW03102-29 | 8.4 | 9.05 |
| 31 | HW03102-31 | 9 | 9.65 |
| 33 | HW03102-33 | 9.6 | 10.25 |
| 71 | HW03102-71 | 21 | 21.65 |
