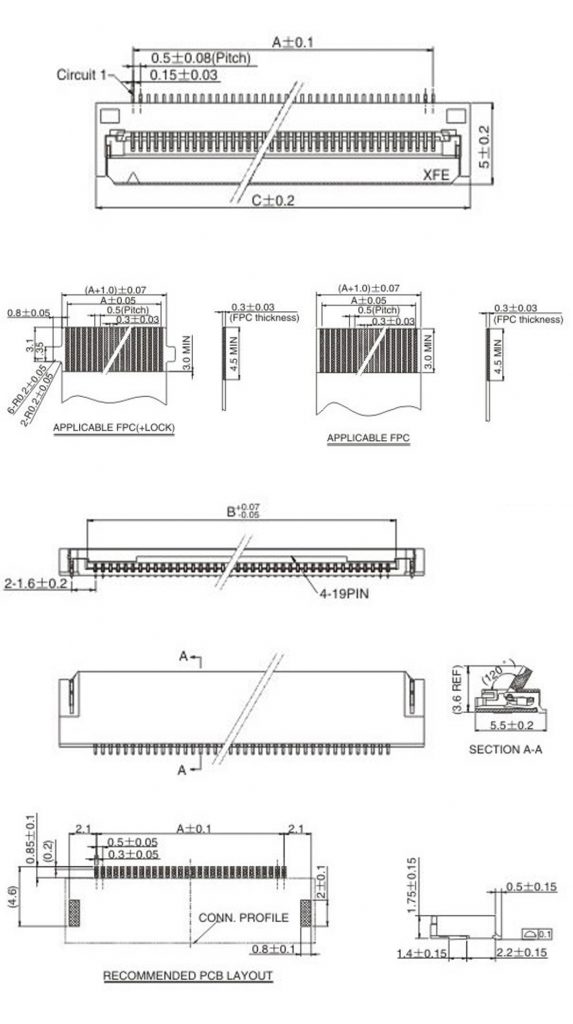

| CKT | Dim A | Dim B | Dim C | CKT | Dim A | Dim B | Dim C |
| 4 | 1.5 | 2.56 | 6.3 | 33 | 16 | 17.06 | 20.8 |
| 5 | 2 | 3.06 | 6.8 | 34 | 16.5 | 17.56 | 21.3 |
| 6 | 2.5 | 3.56 | 7.3 | 35 | 17 | 18.06 | 21.8 |
| 7 | 3 | 4.06 | 7.8 | 36 | 17.5 | 18.56 | 22.3 |
| 8 | 3.5 | 4.56 | 8.3 | 37 | 18 | 19.06 | 22.8 |
| 9 | 4 | 5.06 | 8.8 | 38 | 18.5 | 19.56 | 23.3 |
| 10 | 4.5 | 5.56 | 9.3 | 39 | 19 | 20.06 | 238 |
| 11 | 5 | 6.06 | 9.8 | 40 | 19.5 | 20.56 | 24.3 |
| 12 | 5.5 | 6.56 | 10.3 | 41 | 20 | 21.06 | 24.8 |
| 13 | 6 | 7.06 | 10.8 | 42 | 20.5 | 21.56 | 25.3 |
| 14 | 6.5 | 7.56 | 11.3 | 43 | 21 | 22.06 | 25.8 |
| 15 | 7 | 8.06 | 11.8 | 44 | 21.5 | 22.56 | 26.3 |
| 16 | 7.5 | 8.56 | 12.3 | 45 | 22 | 23.06 | 26.8 |
| 17 | 8 | 9.06 | 12.8 | 46 | 22.5 | 23.56 | 27.3 |
| 18 | 8.5 | 9.56 | 13.3 | 47 | 23 | 24.06 | 27.8 |
| 19 | 9 | 10.06 | 13.8 | 48 | 23.5 | 24.56 | 28.3 |
| 20 | 9.5 | 10.56 | 14.3 | 49 | 24 | 25.06 | 28.8 |
| 21 | 10 | 11.06 | 14.8 | 50 | 24.5 | 25.56 | 29.3 |
| 22 | 10.5 | 11.56 | 15.3 | 51 | 25 | 26.06 | 29.8 |
| 23 | 11 | 12.06 | 15.8 | 52 | 25.5 | 26.56 | 30.3 |
| 24 | 11.5 | 12.56 | 16.3 | 53 | 26 | 27.06 | 30.8 |
| 25 | 12 | 13.06 | 16.8 | 54 | 26.5 | 27.56 | 31.3 |
| 26 | 12.5 | 13.56 | 17.3 | 55 | 27 | 28.06 | 31.8 |
| 27 | 13 | 14.06 | 17.8 | 56 | 27.5 | 28.56 | 32 3 |
| 28 | 13.5 | 14.56 | 18.3 | 57 | 28 | 29.06 | 32.8 |
| 29 | 14 | 15.06 | 18.8 | 58 | 28.5 | 29.56 | 33.3 |
| 30 | 14.5 | 15.56 | 19.3 | 60 | 29.5 | 30.56 | 34.8 |
| 31 | 15 | 16.06 | 19.8 | ||||
| 32 | 15.5 | 16.56 | 20.3 |
