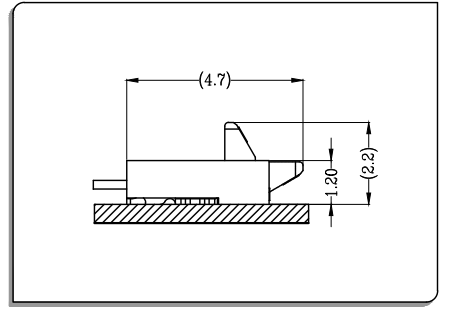

Mounting Measurement

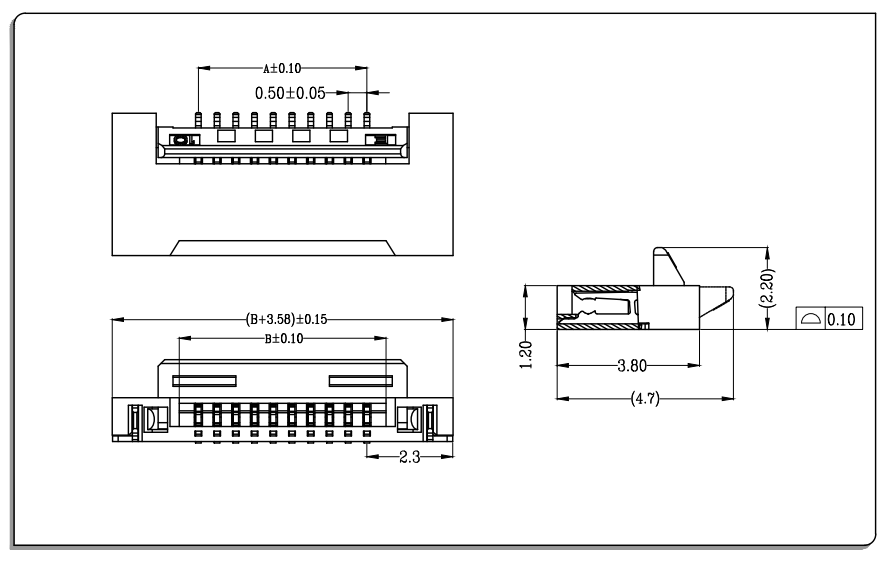

Assembly Layout

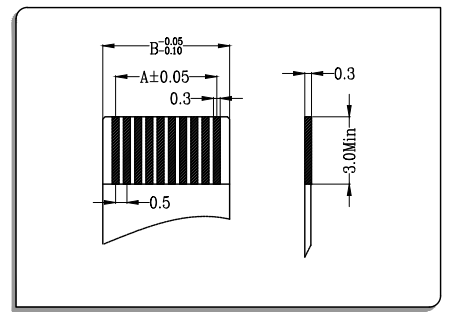

Applicable Flat Cable

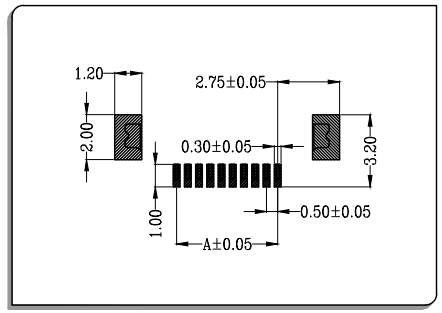

P.C.B Layout
Back Flip R/A
Material and Finish：
Housing:LCP UL94V-0 & Terminal:phosphor bronze &
Fitting:phosphor bronze; Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | HW05120-04 | 1.50 | 2.52 |
| 5 | HW05120-05 | 2.00 | 3.02 |
| 6 | HW05120-06 | 2.50 | 3.52 |
| 7 | HW05120-07 | 3.00 | 4.02 |
| 8 | HW05120-08 | 3.50 | 4.52 |
| 9 | HW05120-09 | 4.00 | 5.02 |
| 10 | HW05120-10 | 4.50 | 5.52 |
| 11 | HW05120-11 | 5.00 | 6.02 |
| 12 | HW05120-12 | 5.50 | 6.52 |
| 13 | HW05120-13 | 6.00 | 7.02 |
| 14 | HW05120-14 | 6.50 | 7.52 |
| — | — | — | — |
| 60 | HW05120-60 | 29.50 | 30.52 |
