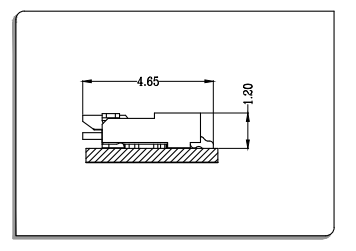

Mounting Measurement

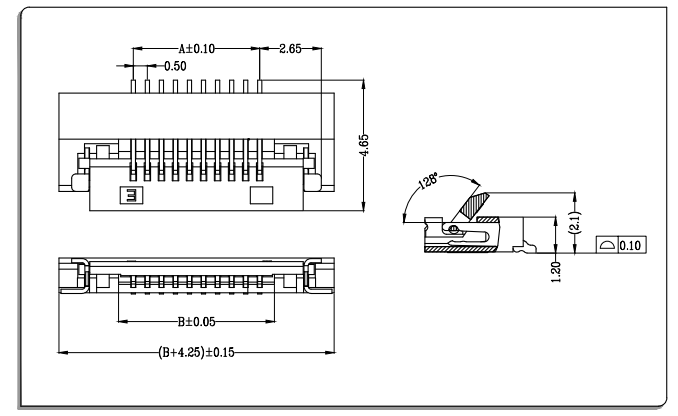

Assembly Layout

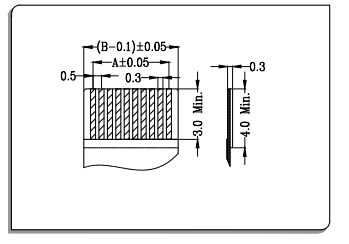

Applicable Flat Cable

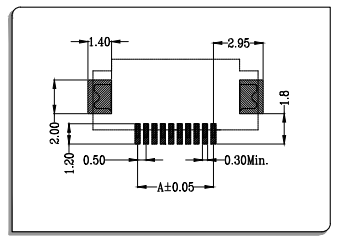

P.C.B Layout
Material and Finish：
Housing:LCP UL94V-0 & Terminal:phosphor bronze &
Fitting:phosphor bronze; Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | XW05122-04 | 1.50 | 2.55 |
| 5 | XW05122-05 | 2.00 | 3.05 |
| 6 | XW05122-06 | 2.50 | 3.55 |
| 7 | XW05122-07 | 3.00 | 4.05 |
| 8 | XW05122-08 | 3.50 | 4.55 |
| 9 | XW05122-09 | 4.00 | 5.05 |
| 10 | XW05122-10 | 4.50 | 5.55 |
| 11 | XW05122-11 | 5.00 | 6.05 |
| 12 | XW05122-12 | 5.50 | 6.55 |
| 13 | XW05122-13 | 6.00 | 7.05 |
| 14 | XW05122-14 | 6.50 | 7.55 |
| — | — — | — | — |
| 60 | XW05122-60 | 29.50 | 30.55 |
