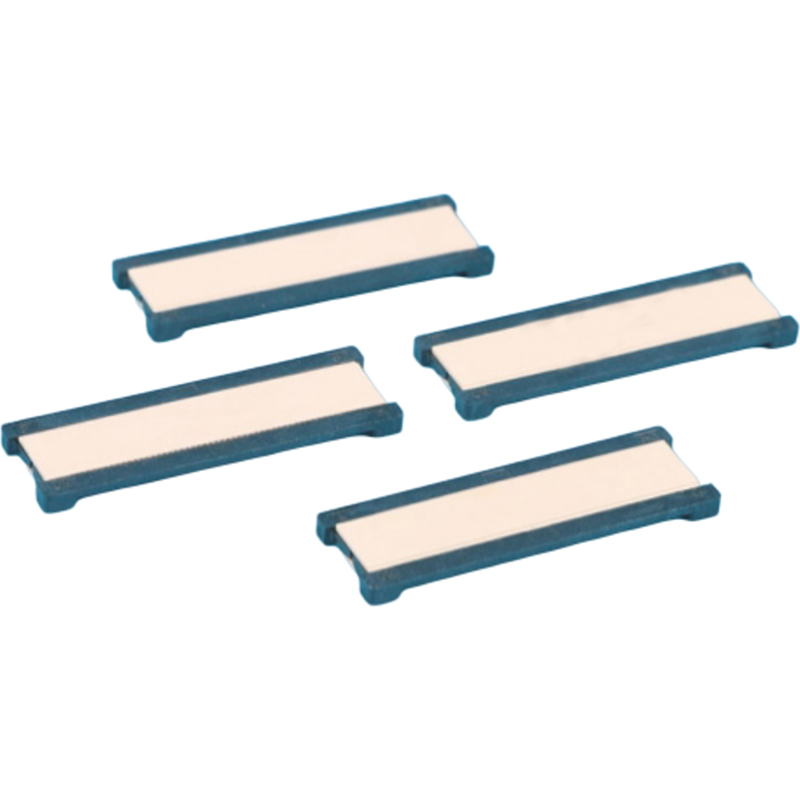

Mounting Measurement

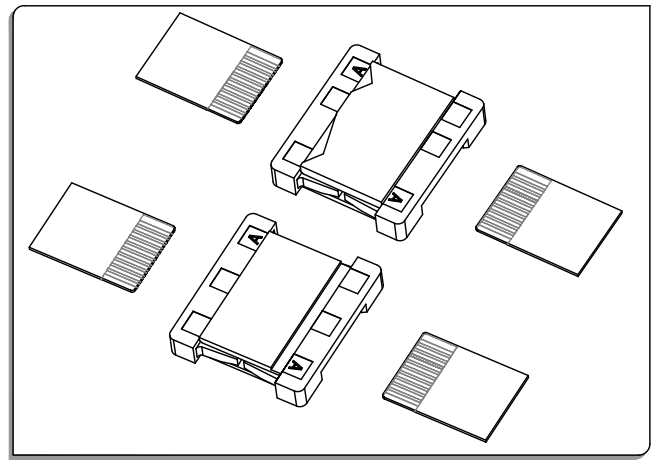

Assembly Layout
Mounting Measurement

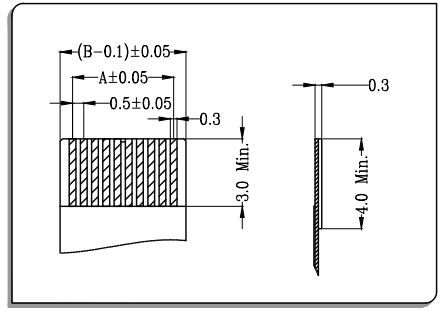

Applicable Flat Cable
Applicable Flat Cable

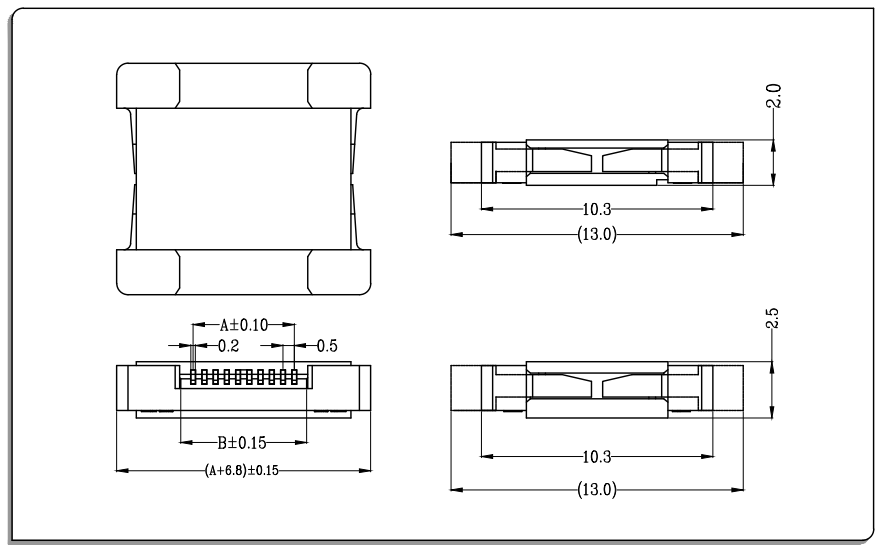

Double-Side drawing
Material and Finish：
Housing:LCP UL94V-0 & Terminal:phosphor bronze &
Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | SL05200-04 | 1.50 | 2.56 |
| 5 | SL05200-05 | 2.00 | 3.06 |
| 6 | SL05200-06 | 2.50 | 3.56 |
| 7 | SL05200-07 | 3.00 | 4.06 |
| 8 | SL05200-08 | 3.50 | 4.56 |
| — | — — | — | — |
| 60 | SL05200-60 | 29.50 | 30.56 |
| 4 | SL05250-04 | 1.50 | 2.56 |
| 5 | SL05250-05 | 2.00 | 3.06 |
| 6 | SL05250-06 | 2.50 | 3.56 |
| 7 | SL05250-07 | 3.00 | 4.06 |
| 8 | SL05250-08 | 3.50 | 4.56 |
| — | — — | — | — |
| 60 | SL05250-60 | 29.50 | 30.56 |
