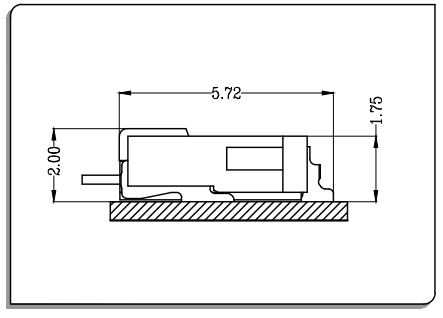

Mounting Measurement
Assembly Layout

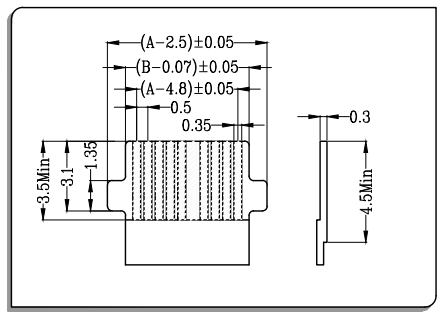

Applicable Flat Cable

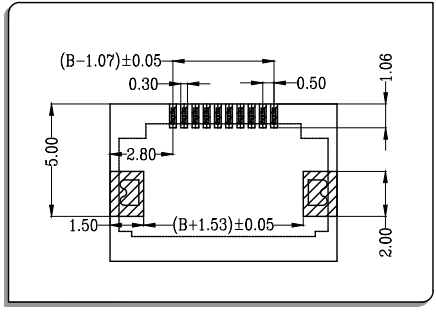

P.C.B Layout
Easy-on R/A
Material and Finish：
Housing:LCP UL94V-0 & Terminal:phosphor bronze &Fitting:phosphor bronze; Finish:Tin-plated & Gold-plated
Easy-on R/A With Buckle Large solder
Material and Finish：
Housing:LCP UL94V-0 & Terminal:phosphor bronze &Fitting:phosphor bronze; Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 5 | XW05202-05 | 6.80 | 3.07 |
| 6 | XW05202-06 | 7.30 | 3.57 |
| 7 | XW05202-07 | 7.80 | 4.07 |
| 8 | XW05202-08 | 8.30 | 4.57 |
| 9 | XW05202-09 | 8.80 | 5.07 |
| 10 | XW05202-10 | 9.30 | 5.57 |
| 11 | XW05202-11 | 9.80 | 6.07 |
| 12 | XW05202-12 | 10.30 | 6.57 |
| 13 | XW05202-13 | 10.80 | 7.07 |
| 14 | XW05202-14 | 11.30 | 7.57 |
| 15 | XW05202-15 | 11.80 | 8.07 |
| — | — — | — | 一 |
| 80 | XW05202-80 | 44.30 | 40.57 |
