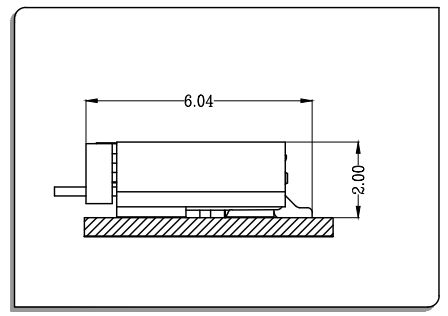

Mounting Measurement

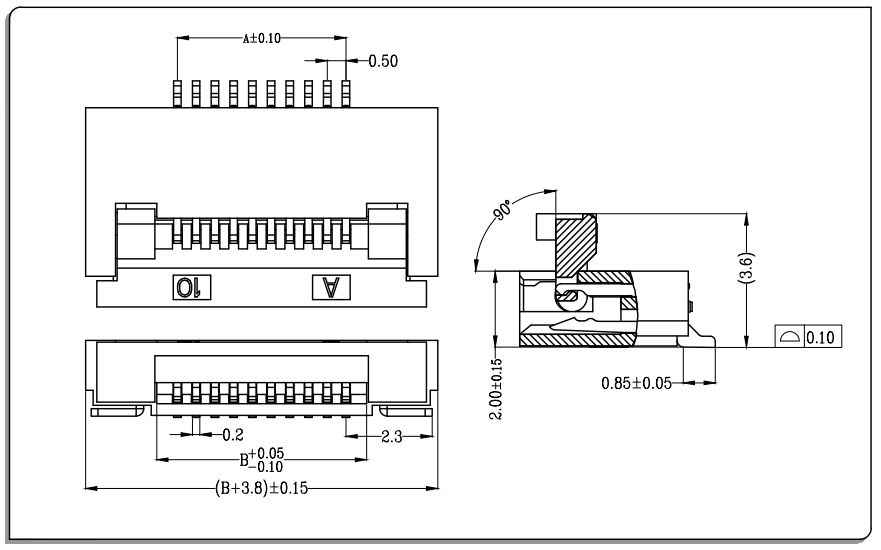

Assembly Layout

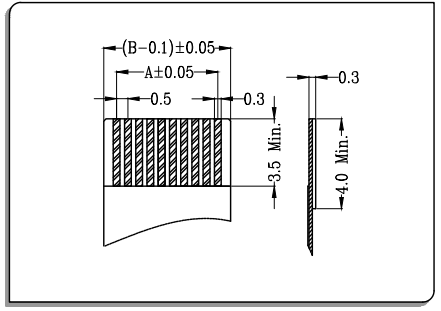

Applicable Flat Cable

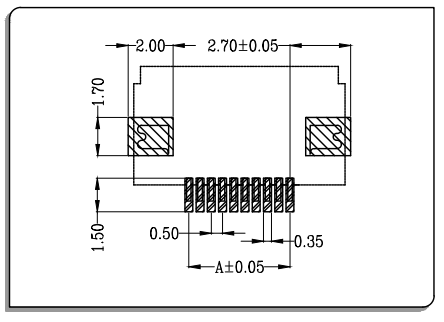

P.C.B Layout
Easy-on R/A
Material and Finish：Housing:LCP UL94V-0 & Terminal:phosphor bronze &Fitting:Brass; Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | XW05202-04 | 1.50 | 2.60 |
| 5 | XW05202-05 | 2.00 | 3.10 |
| 6 | XW05202-06 | 2.50 | 3.60 |
| 7 | XW05202-07 | 3.00 | 4.10 |
| 8 | XW05202-08 | 3.50 | 4.60 |
| 9 | XW05202-09 | 4.00 | 5.10 |
| 10 | XW05202-10 | 4.50 | 5.60 |
| 11 | XW05202-11 | 5.00 | 6.10 |
| 12 | XW05202-12 | 5.50 | 6.60 |
| 13 | XW05202-13 | 6.00 | 7.10 |
| 14 | XW05202-14 | 6.50 | 7.60 |
| — | — | — | |
| 65 | XW05202-65 | 32.00 | 33.10 |
