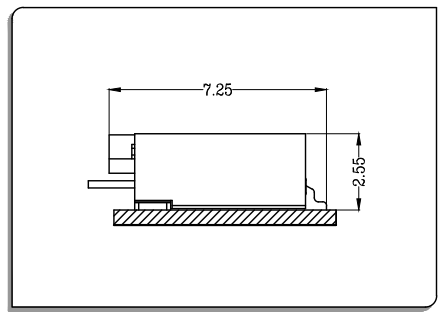

Mounting Measurement

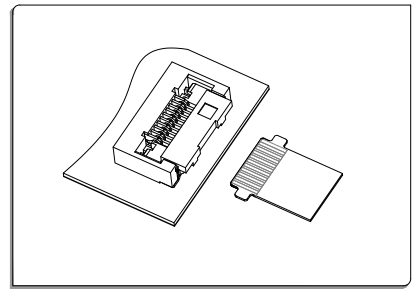

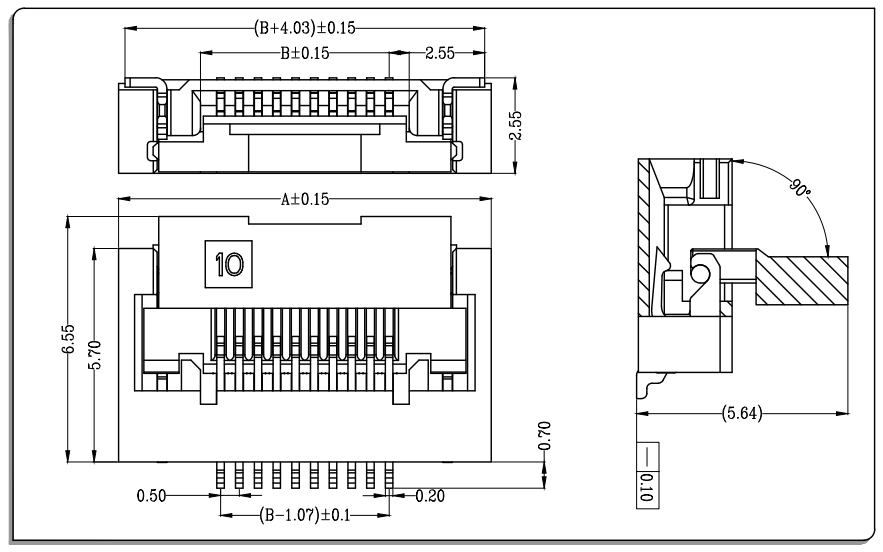

Assembly Layout

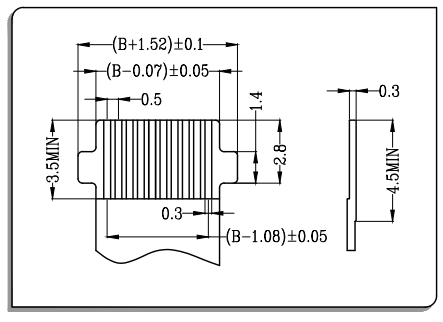

Applicable Flat Cable

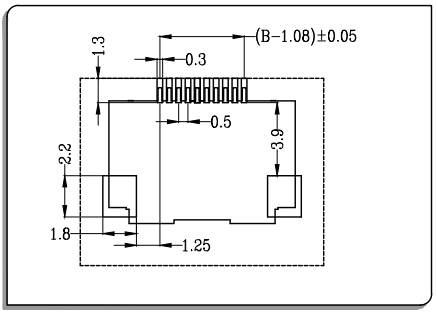

P.C.B Layout

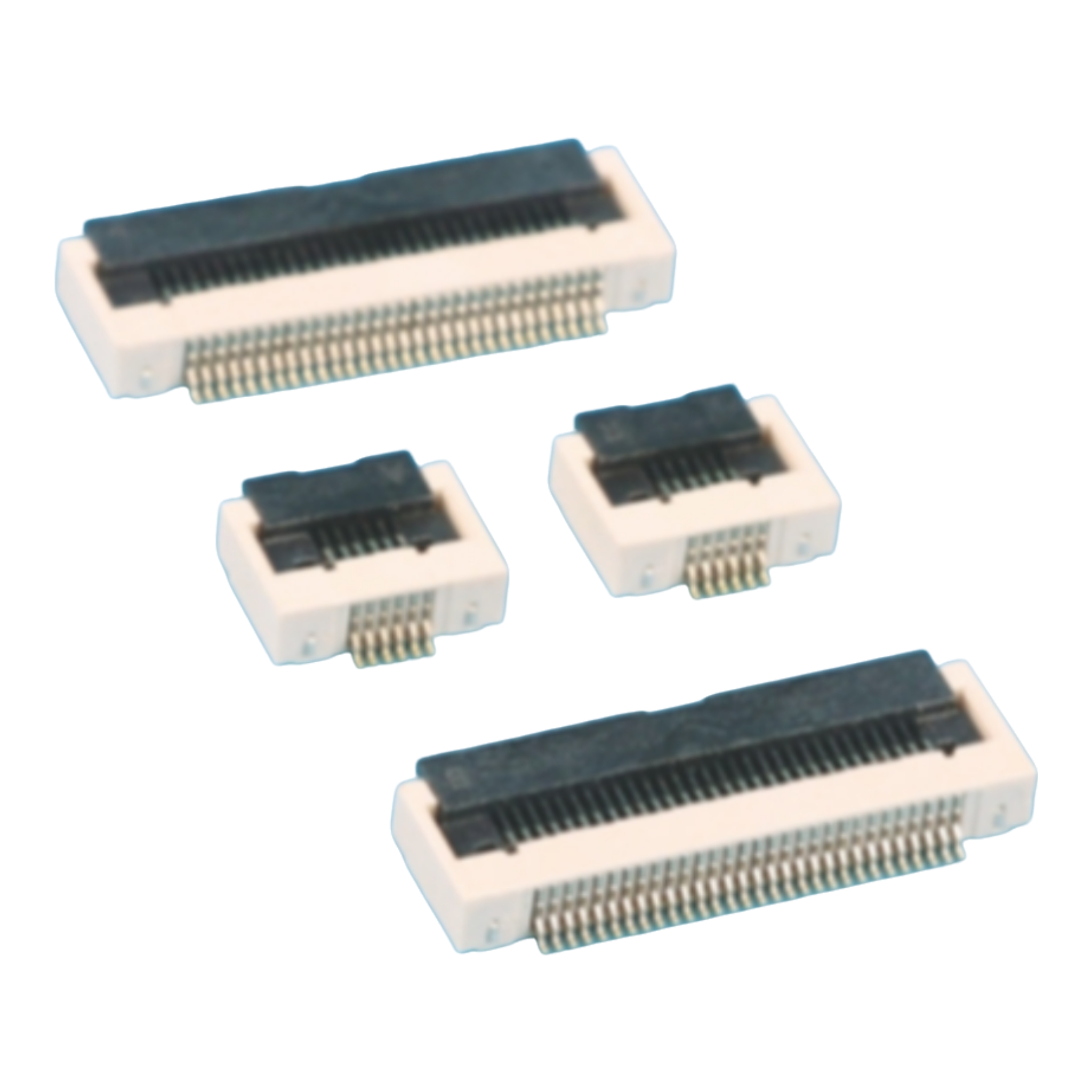

Easy-on R/A Customized Butterfly buckle
Material and Finish：
Housing:LCP UL94V-0 & Terminal:phosphor bronze &
Fitting:Brass; Finish:Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 5 | XW05252-05 | 7.45 | 3.07 |
| 6 | XW05252-06 | 7.95 | 3.57 |
| 7 | XW05252-07 | 8.45 | 4.07 |
| 8 | XW05252-08 | 8.95 | 4.57 |
| 9 | XW05252-09 | 9.45 | 5.07 |
| 10 | XW05252-10 | 9.95 | 5.57 |
| 11 | XW05252-11 | 10.45 | 6.07 |
| 12 | XW05252-12 | 10.95 | 6.57 |
| 13 | XW05252-13 | 11.45 | 7.07 |
| 14 | XW05252-14 | 11.95 | 7.57 |
| 15 | XW05252-15 | 12.45 | 8.07 |
| — | — — | — | |
| 80 | XW05252-80 | 44.95 | 40.57 |
