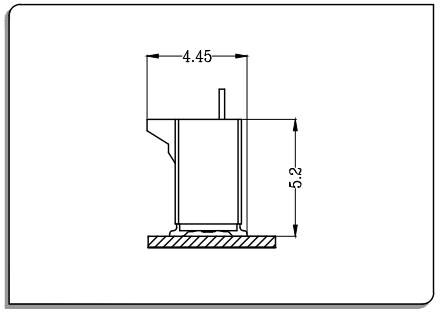

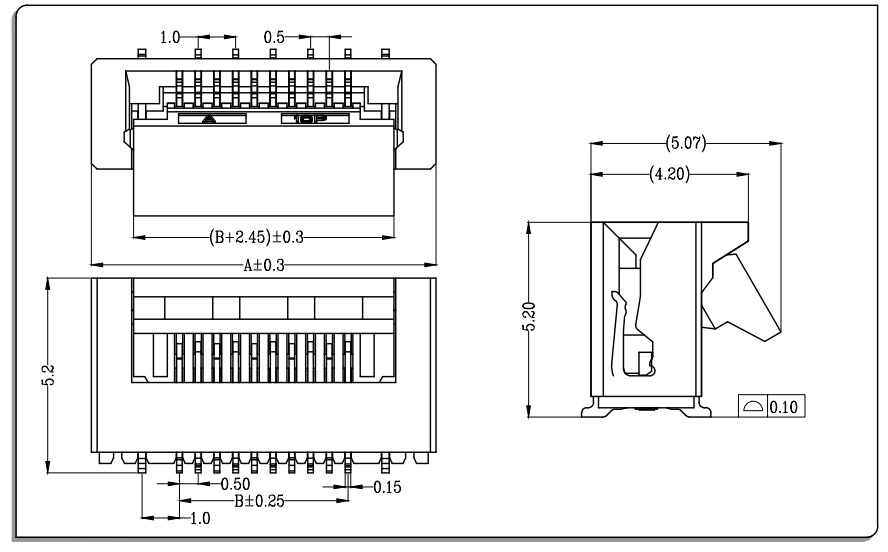

Mounting Measurement

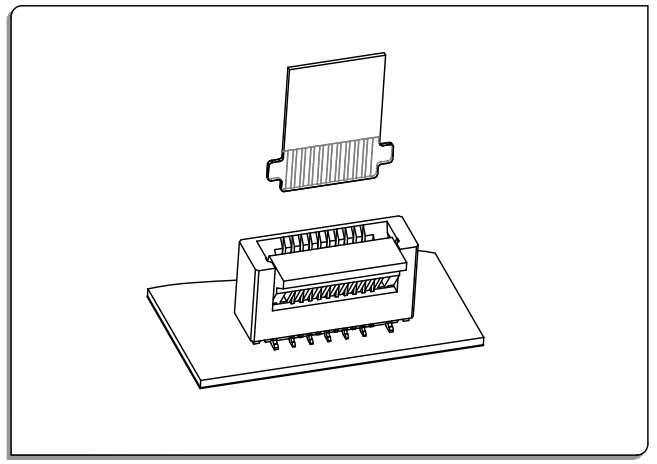

Assembly Layout

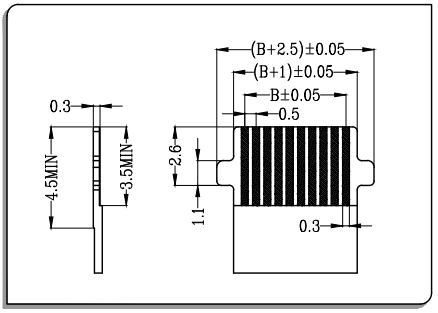

Applicable Flat Cable

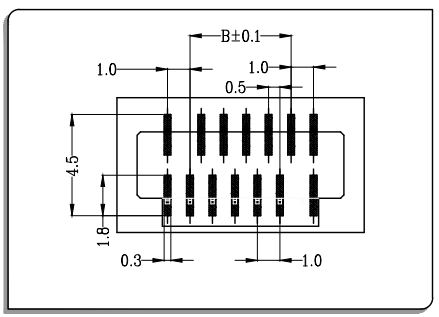

P.C.B Layout
Easy-on S/T Positive pointer With Buckle
Material and Finish：
Housing:LCP UL94V-0 & Terminal:phosphor bronze &Fitting:phosphor bronze; Finish:Tin-plated & Gold-plated
| Part No | DIM A | DIM B | |
| 10 | HW05270-10 | 4.50 | 5.60 |
| 14 | HW05270-14 | 6.50 | 7.60 |
| 19 | HW05270-19 | 9.00 | 10.10 |
| 20 | HW05270-20 | 9.50 | 10.60 |
| 30 | HW05270-30 | 14.50 | 15.60 |
| 32 | HW05270-32 | 15.50 | 16.60 |
| 40 | HW05270-40 | 19.50 | 20.60 |
| 41 | HW05270-41 | 20.00 | 21.10 |
| 50 | HW05270-50 | 24.50 | 25.60 |
| 51 | HW05270-51 | 25.00 | 26.10 |
| 60 | HW05270-60 | 29.50 | 30.60 |
| — — | — | — | |
| 68 | HW05270-68 | 33.50 | 34.60 |
| CKT | Part No | DIM A | DIM B |
| 5 | XL05523-05 | 6.70 | 2.00 |
| 6 | XL05523-06 | 7.20 | 2.50 |
| 7 | XL05523-07 | 7.70 | 3.00 |
| 8 | XL05523-08 | 8.20 | 3.50 |
| 9 | XL05523-09 | 8.70 | 4.00 |
| 10 | XL05523-10 | 9.20 | 4.50 |
| 11 | XL05523-11 | 9.70 | 5.00 |
| 12 | XL05523-12 | 10.20 | 5.50 |
| 13 | XL05523-13 | 10.70 | 6.00 |
| 14 | XL05523-14 | 11.20 | 6.50 |
| 15 | XL05523-15 | 11.70 | 7.00 |
| — — | — | — |
