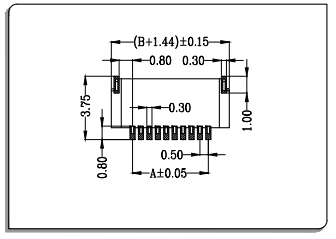

Mounting Measurement
Assembly Layout

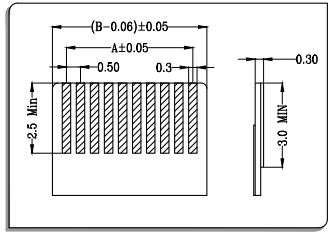

Applicable Flat Cable
P.C.B Layout
Back Flip R/A
Materialand Finish:Housing:LCP UL94V-0& Terminal:phosphor bronze &Fitting:phosphor bronze;Finish:Tinplated & Gold-plated
| CKT | Part No | DIM A | DIM B |
| 4 | HW05100-04 | 1.50 | 2.56 |
| 5 | HW05100-05 | 2.00 | 3.06 |
| 6 | HW05100-06 | 2.50 | 3.56 |
| 7 | HW05100-07 | 3.00 | 4.06 |
| 11 | HW05100-11 | 5.00 | 6.06 |
| 12 | HW05100-12 | 5.50 | 6.56 |
| 13 | HW05100-13 | 6.00 | 7.05 |
| 14 | HW05100-14 | 6.50 | 7.56 |
| — | — | — | — — |
| 40 | HW05100-40 | 19.5 | 20.5 |
| HW05100-08 | 8 | 3.50 | 4.56 |
| HW05100-09 | 9 | 4.00 | 5.06 |
| HW05100-10 | 10 | 4.50 | 5.56 |
