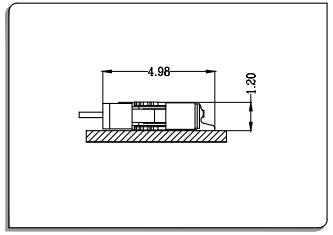

Mounting Measurement
Assembly Layout
Applicable Flat Cable

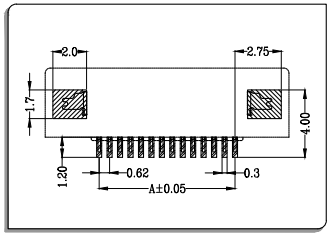

P.C.B Layout
ZIF R/A Upper contact
P.C.B Layout
Material and Finish：
Housing:LCP UL94V-0 & Terminal:phosphor bronze &Fitting:phosphor bronze; Finish:Tin-plated & Gold-plated
Products
0.62-h1.2Pull-out horizontal top contact electronic connectors
SPECIFICATIONS
CKT：14Pin
Current rating: 0.5A AC/DC
Voltage rating(max)：50V，AC/DC
Working Temperature：-25℃～+85℃，
(Including temperature rise in applying electrical current)
Contact resistance:初始Initial value ≤30mΩ
After environmental testing ≤50mΩ
Insulation resistance: ≥500MΩ
Withstand voltage: 500VAC(rms)
Applicable PC board thickness：1.6mm to 2.0mm
