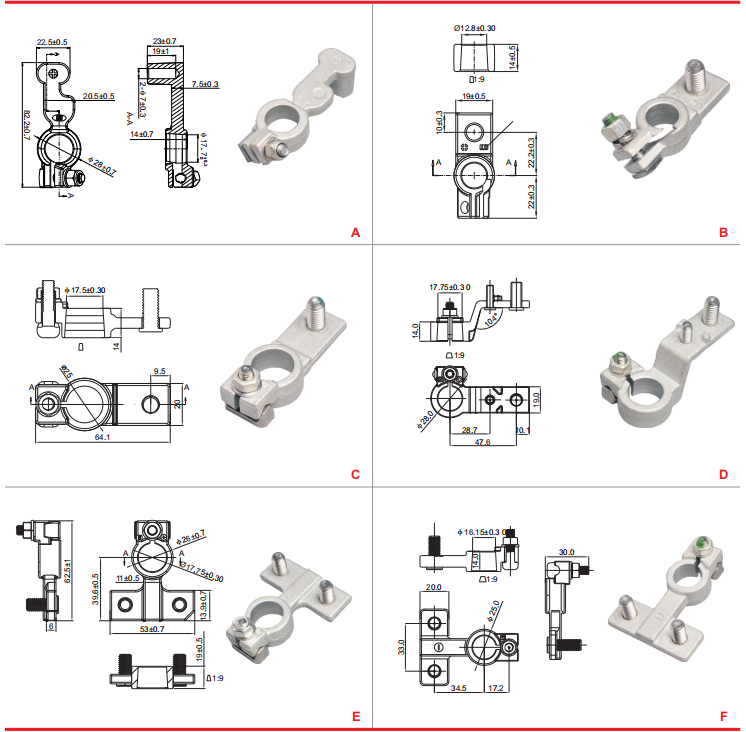

Fig | Type | Material | Surface treatment | Applicable wire (mm²) | size | Minimum packing | Polarity | |
| D | ||||||||
| A | ST135131-D7 | CW612N | Matt fnplafng | 25 | φ7 | + | ||
| B | ST135138 | CW612N | Matt inplafng | + | ||||
| C | ST135147 | CW612N | Mattinplaing | 60 | + | |||
| D | ST135153 | CW612N | Matt fnplafng | 70 | + | |||
| E | ST135125-2 | CW612N | Matt fnplafng | + | ||||
| F | ST137153 | CW612N | Matt inplafng | 70 | – | |||
