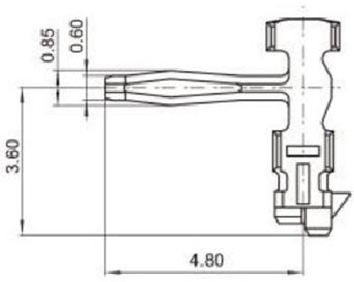

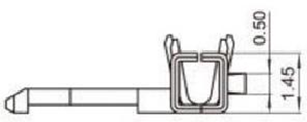

BF 20014-T(35021-1201)
| Part No. | Wire Range | Insulation O.D. | Material | Finish |
| BF20014-T | AWG#30-#24 | 1.50mm(max) | Phosphor bronze | Tin-plated |
BF 20014-Y(35023-NY)

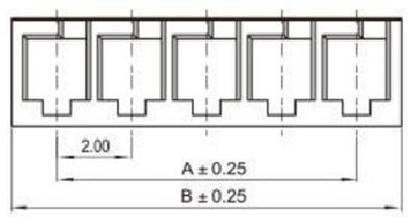

Mounting Dimensions(90°)

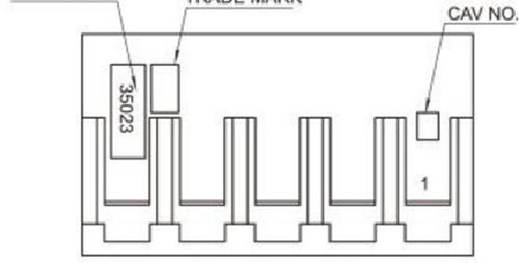

HOUSING
| Poles | PartNo. | Dimensions mm | |
| A | B | ||
| 2 | BF20014-02Y | 2 | 4.4 |
| 3 | BF20014-03Y | 4 | 6.4 |
| 4 | BF20014-04Y | 6 | 8.4 |
| 5 | BF20014-05Y | 8 | 10.4 |
| 6 | BF20014-06Y | 10 | 12.4 |
| 7 | BF20014-07Y | 12 | 14.4 |
| 8 | BF20014-08Y | 14 | 16.4 |
| 9 | BF20014-09Y | 16 | 18.4 |
| 10 | BF20014-10Y | 18 | 20.4 |
| 11 | BF20014-11Y | 20 | 22.4 |
| 12 | BF20014-12Y | 22 | 24.4 |
| 13 | BF20014-13Y | 24 | 26.4 |
| 14 | BF20014-14Y | 26 | 28.4 |
| 15 | BF20014-15Y | 28 | 30.4 |
| 16 | BF20014-16Y | 30 | 32.4 |
