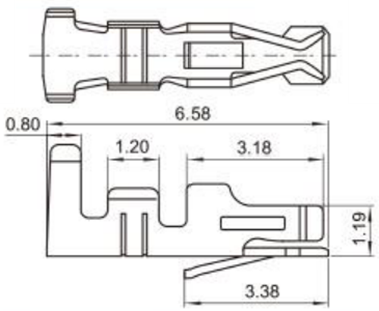

BF20011-T(A2004HB)
| Part No. | Wire Range | Insulation O.D. | Material | Finish |
| BF 20011-T | AWG#28-#22 | 1.50mm(max) | Phosphor bronze | Tin-plated |
BF20011-AW(A2004HB)
Mounting Dimensions(180°)
HOUSING
| Poles | Part.No | Dimensions mm | |
| A | B | ||
| 2×04 | BF20011-08Y | 6.00 | 9.90 |
| 2×05 | BF20011-10Y | 8.00 | 11.90 |
| 2×06 | BF20011-12Y | 10.00 | 13.90 |
| 2×07 | BF20011-14Y | 12.00 | 15.90 |
| 2×08 | BF20011-16Y | 14.00 | 17.90 |
| 2×09 | BF20011-18Y | 16.00 | 19.90 |
| 2×10 | BF20011-20Y | 18.00 | 21.90 |
| 2×11 | BF20011-22Y | 20.00 | 23.90 |
| 2×12 | BF20011-24Y | 22.00 | 25.90 |
| 2×13 | BF20011-26Y | 24.00 | 27.90 |
| 2×14 | BF20011-28Y | 26.00 | 29.90 |
| 2×15 | BF20011-30Y | 28.00 | 31.90 |
| 2×16 | BF20011-32Y | 30.00 | 33.90 |
| 2×17 | BF20011-34Y | 32.00 | 35.90 |
| 2×18 | BF20011-36Y | 34.00 | 37.90 |
| 2×19 | BF20011-38Y | 36.00 | 39.90 |
| 2×20 | BF20011-40Y | 38.00 | 41.90 |
| 2×21 | BF20011-42Y | 40.00 | 43.90 |
| 2×22 | BF20011-44Y | 42.00 | 45.90 |
WAFER
| Poles | PartNo | Dimensions mm | |
| A | B | ||
| 2×02 | BF20011-04A/AW | 2.00 | 6.00 |
| 2×03 | BF20011-06A/AW | 4.00 | 8.00 |
| 2×04 | BF20011-08A/AW | 6.00 | 10.00 |
| 2×05 | SH20011-10A/AW | 8.00 | 12.00 |
| 2×06 | BF20011-12A/AW | 10.00 | 14.00 |
| 2×07 | BF20011-14A/AW | 12.00 | 16.00 |
| 2×08 | BF20011-16A/AW | 14.00 | 18.00 |
| 2×09 | BF20011-18A/AW | 16.00 | 20.00 |
| 2×10 | BF20011-20A/AW | 18.00 | 22.00 |
| 2×11 | BF20011-22A/AW | 20.00 | 24.00 |
| 2×12 | BF20011-24A/AW | 22.00 | 26.00 |
| 2×13 | BF20011-26A/AW | 24.00 | 28.00 |
| 2×14 | BF20011-28A/AW | 26.00 | 30.00 |
| 2×15 | BF20011-30A/AW | 28.00 | 32.00 |
| 2×16 | BF20011-32A/AW | 30.00 | 34.00 |
| 2×17 | BF20011-34A/AW | 32.00 | 36.00 |
| 2×18 | BF20011-36A/AW | 34.00 | 38.00 |
| 2×19 | BF20011-38A/AW | 36.00 | 40.00 |
| 2×20 | BF20011-40A/AW | 38.00 | 42.00 |
