BF 20012-RT(C2003M)
BF 20012-P（C2003HF）
BF 20012-R(2003HM)
BF 20012-PT(C2003F)

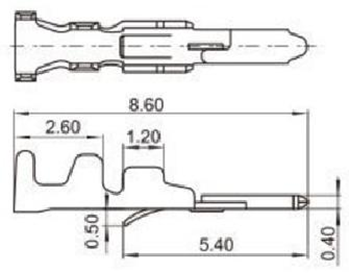

| Part No | Wire Range | Insulation O.D | Material | Finish |
| BF20012-PT | AWG#28-#24 | 1.15mm(max) | Phosphor bronze | Tin-plated |
Mounting Dimensions

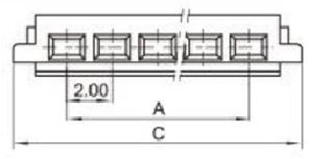

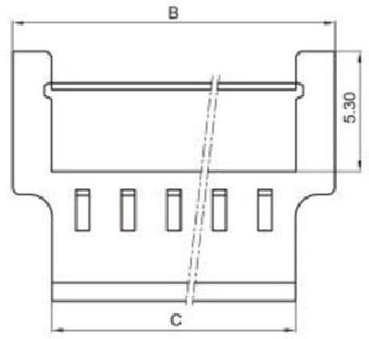

PLUG HOUSING
| Poles | Part.No. | Dimensions mm | ||
| A | B | C | ||
| 2 | BF20012-2P | 2 | 4.5 | 6.6 |
| 3 | BF20012-3P | 4 | 6.5 | 8.6 |
| 4 | BF20012-4P | 6 | 8.5 | 10.6 |
| 5 | BF20012-5P | 8 | 10.5 | 12.6 |
| 6 | BF20012-6P | 10 | 12.5 | 14.6 |
| 7 | BF20012-7P | 12 | 14.5 | 16.6 |
| 8 | BF20012-8P | 14 | 16.5 | 18.6 |
| 9 | BF20012-9P | 16 | 18.5 | 20.6 |
| 10 | BF20012-10P | 18 | 20.5 | 22.6 |
| 11 | BF20012-11P | 20 | 22.5 | 24.6 |
| 12 | BF20012-12P | 22 | 24.5 | 26.6 |
| 13 | BF20012-13P | 24 | 26.5 | 28.6 |
| 14 | BF20012-14P | 26 | 28.5 | 30.6 |
| 15 | BF20012-15P | 28 | 30.5 | 32.6 |
| 16 | BF20012-16P | 30 | 32.5 | 34.6 |

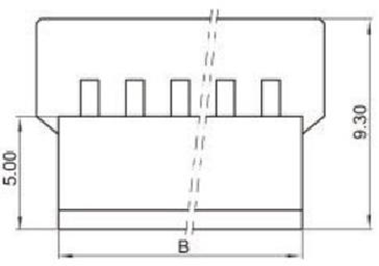

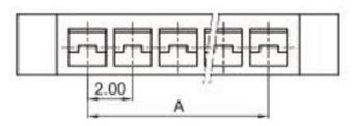

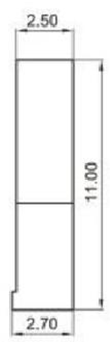

RECEPTACLE HOUSING
| Poles | Part.No. | Dimensions mm | |
| A | B | ||
| 2 | BF20012-2R | 2 | 8.15 |
| 3 | BF20012-3R | 4 | 10.15 |
| 4 | BF20012-4R | 6 | 12.15 |
| 5 | BF20012-5R | 8 | 14.15 |
| 6 | BF20012-6R | 10 | 16.15 |
| 7 | BF20012-7R | 12 | 18.15 |
| 8 | BF20012-8R | 14 | 20.15 |
| 9 | BF20012-9R | 16 | 22.15 |
| 10 | SF120012-10F | 18 | 24.15 |
| 11 | 20( 2-1 R | 20 | 26.15 |
| 12 | BF20012-12R | 22 | 28.15 |
| 13 | BF20012-13R | 24 | 30.15 |
| 14 | BF20012-14R | 26 | 32.15 |
| 15 | BF20012-15R | 28 | 34.15 |
| 16 | BF20012-16R | 30 | 36.15 |
