BF25002-SCN

Specifications

1. Poles:2 to 15

2. Current rating:3.0A AC/DC

3.Voltage rating:250VAC/DC

4.Temperature range:-25C to+85C

5. Contact resistance:   <20mΩ

6. Insulation resistance:  >1000MΩ

7. Withstand voltage:1000V AC/minute

8. Applicable  wire:AWG#28to  #22

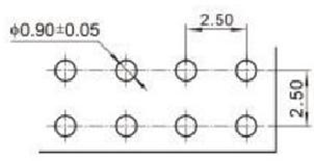

9.Applicable PC board thickness:1.6mm

10.Material:

Housing:Nylon66UL94V-0

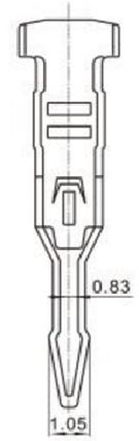

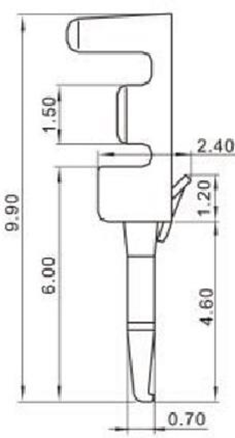

Terminal:Phos.Bronze Tin-Plated
