BF25005-2507 ket connector

Specifications

1、  Poles:2  to16

2、 Current rating:3.0A AC/DC

3、 Voltage    rating:500V    AC/DC

4、Temperature range:-25C to+85C

5、  Contact         resistance:<20mΩ

6、 Insulation     resistance:  ≥1000MΩ

7、  Withstand    voltage:1500V    AC/minute

8、 Applicable         wire:AWG#28to#22

9、 Applicable  PC  board  thickness:1.6mm

10、 Material:

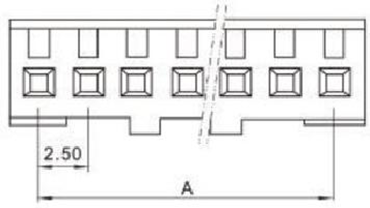

Housing:Nylon66 UL94 V-0 or UL94V-2

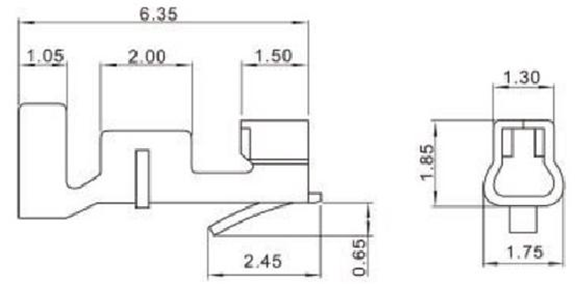

Terminal: Phos.Bronze    Tin-Plated

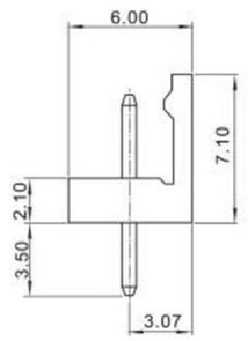

Wafer:

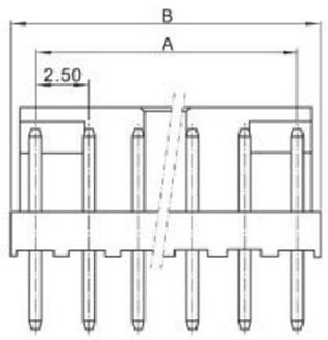

Pin: Brass Tin-Plated

Base:Nylon 66 UL94 V-0 orUL94V-2
