Specifications
1、 Poles:2
2、 Current rating:3.0A AC/DC
3、 Voltage rating:250V AC/DC
4、 Temperature range:-25C to+85C
5、 Contact resistance:<10mΩ
6、 Insulation resistance:>500MΩ
7、 Withstand voltage:1500V AC/minute
8、Applicable wire:AWG#28to #22
9、 Material:
Housing:Nylon66UL94V-0
Terminal:Phos.Bronze Tin-Plated
Base:Nylon 66 UL94V-0

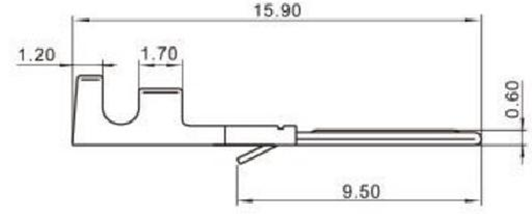

BF 25006-T
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| 1.80mm(max) | Phosphor bronze | Tin-platec |

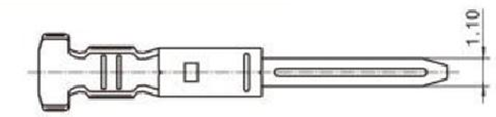

BF 25006-P

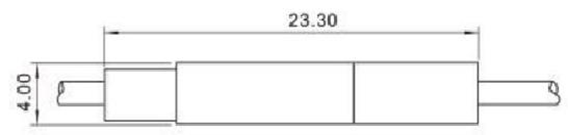

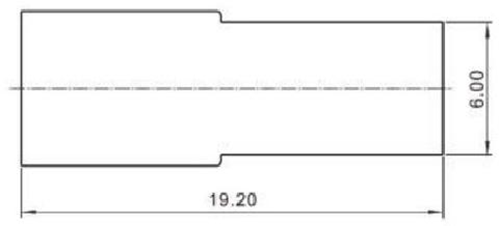

BF 25006-RT/SH 25007-RT
| Part No. | Wire Range | Insulation O.D | Materia | Finish |
| BF25006RT | AWG#28-#22 | 1.80mm(max) | Phosphor bronze | Tin-plated |

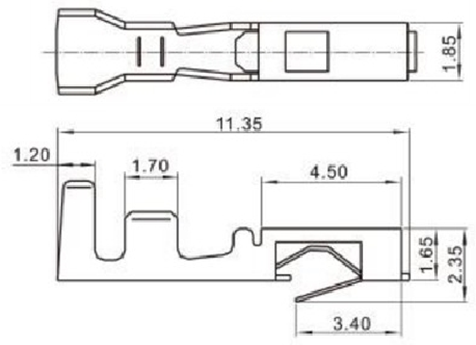

BF 25006-R
Mounting Dimensions
