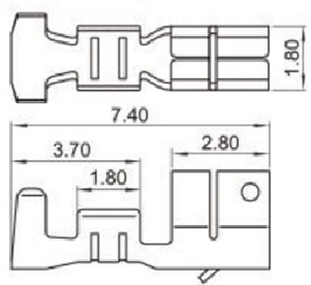

BF 25015-PT
| Part No | Wire Range | Insulation O.D | Material | Finish |
| BF 25015-PT | AWG#26-#20 | 0.90~1.70mm | Phosphor bronze | Tin-plated |
BF 25015-S
BF 25015-RT
| Part No | Wire Range | Insulation O.D | Material | Finish |
| BF25015-RT | AWG#26-#20 | 0.90~1.70mm | Phosphor bronze | Tin-plated |
BF 25015-R

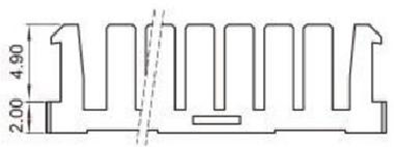

RECEPTACLE/PLUG HOUSING
| Poles | PartNo. | Dime sions mr | |||
| A | B | C | D | ||
| 2 | BF25015-2R/P | 2.5 | 7.5 | 6.1 | 8.1 |
| 3 | BF25015-3R/P | 5 | 10 | 8.6 | 10.6 |
| 4 | BF25015-4R/P | 7.5 | 12.5 | 11.1 | 13.1 |
| 5 | BF25015-5R/P | 10 | 15 | 13.6 | 15.6 |
| 6 | BF25015-6R/P | 12.5 | 17.5 | 16.1 | 17.1 |
| 7 | BF25015-7R/P | 15 | 20 | 18.6 | 20.6 |
| 8 | BF25015-8R/P | 17.5 | 22.5 | 21.1 | 23.1 |
| 9 | BF25015-9R/P | 20 | 25 | 23.6 | 25.6 |
| 10 | BF25015-10R/P | 22.5 | 27.5 | 26.1 | 28.1 |
| 13 | BF25015-13R/P | 30 | 35 | 33.6 | 35.6 |
| 15 | BF25015-15R/P | 35 | 40 | 38.6 | 40.6 |

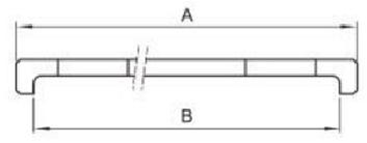

RETAINER
| Poles | PartNo | Dimensions mn | |
| A | B | ||
| 2 | BF25015-2S | 6.5 | 4.3 |
| 3 | BF25015-3S | 9 | 6.8 |
| 4 | BF25015-4S | 11.5 | 9.3 |
| 5 | BF25015-5S | 14 | 11.8 |
| 6 | BF25015-6S | 16.5 | 14.3 |
| 7 | BF25015-7S | 19 | 16.8 |
| 8 | BF25015-8S | 21.5 | 19.3 |
| 9 | BF25015-9S | 24 | 21.8 |
| 10 | BF25015-10S | 26.5 | 24.3 |
| 13 | BF25015-13S | 34 | 31.8 |
| 15 | BF25015-15S | 39 | 36.8 |
