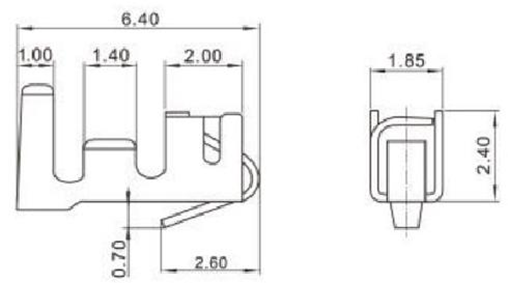

BF 25027-T/BF 25001-T
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| BF25001-T | AWG#28-#22 | 1.20~1.90mm | Phosphor bronze | Tin-plated |
BF 25027-Y(XH）
BF 25027-A(XHB）

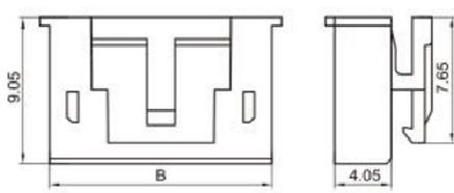

HOUSING
| Poles | Part.No. | Dimensions mm | |
| A | B | ||
| 2 | BF25027-2Y | 2.5 | 5.8 |
| 3 | BF25027-3Y | 5 | 8.3 |
| 4 | BF25027-4Y | 7.5 | 10.8 |
| 5 | BF25027-5Y | 10 | 13.3 |
| 6 | BF25027-6Y | 12.5 | 15.8 |
| 7 | BF25027-7Y | 15 | 18.3 |
| 8 | BF25027-8Y | 17.5 | 20.8 |
| 9 | BF25027-9Y | 20 | 23.3 |
| 10 | BF25027-10Y | 22.5 | 25.8 |
| 11 | BF25027-11Y | 25 | 28.3 |
| 12 | BF25027-12Y | 27.5 | 30.8 |
| 13 | BF25027-13Y | 30 | 33.3 |
| 14 | BF25027-14Y | 32.5 | 35.8 |
| 15 | BF25027-15Y | 35 | 38.3 |
| 16 | BF25027-16Y | 37.5 | 40.8 |
| 17 | BF25027-17Y | 40 | 43.3 |

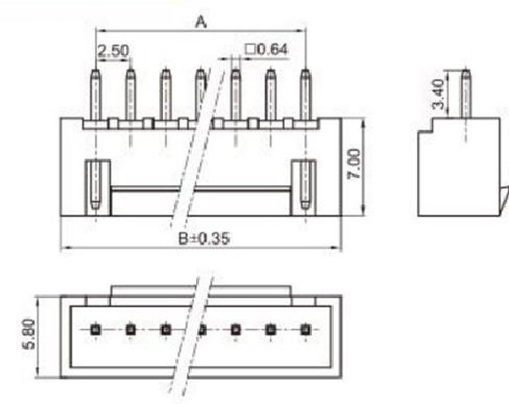

WAFER
| Poles | Part.No. | Dimensions mm | |
| A | B | ||
| 2 | BF25027-2A | 2.5 | 7.5 |
| 3 | BF25027-3A | 5 | 10 |
| 4 | BF25027-4A | 7.5 | 12.5 |
| 5 | BF25027-5A | 10 | 15 |
| 6 | BF25027-6A | 12.5 | 17.5 |
| 7 | BF25027-7A | 15 | 20 |
| 8 | BF25027-8A | 17.5 | 22.5 |
| 9 | BF25027-9A | 20 | 25 |
| 10 | BF25027-10A | 22.5 | 27.5 |
| 11 | BF25027-11A | 25 | 30 |
| 12 | BF25027-12A | 27.5 | 32.5 |
| 13 | BF25027-13A | 30 | 35 |
| 14 | BF25027-14A | 32.5 | 37.5 |
| 15 | BF25027-15A | 35 | 40 |
| 16 | BF25027-16A | 37.5 | 42.5 |
