BF25400-TJC8 electric connectorBF25400-TJC8

BF25400-TJC8

BF25400-TJC8 electric connectorBF25400-TJC8

Specifications

1、 Poles:2 to20

2、Current rating:3.0A AC/DC

3、 Voltage rating:250V AC/DC

4、Temperature range:-25C to+85C

5、Contact resistance:<20mΩ

6、 Insulation resistance:>1000MΩ

7、 Withstand voltage:800V AC/minute

8、 Applicable wire:AWG#28to#22

9、Applicable PC board thickness:1.6mm

10、 Material:

Housing:Nylon66 UL94 V-0

Terminal:Phos.Bronze Tin-Plated

Wafer:

Pin: Brass Gold-Plated

Base:Nylon66 UL94 V-0

Product introduction

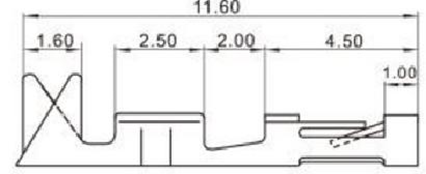

BF 25400-T

BF 25400-Y

BF 25400-A

BF 25400-AW

安装尺寸(180°)

安装尺寸(90°）

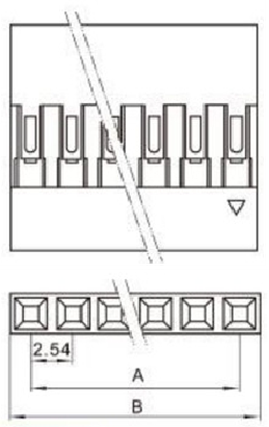

HOUSIN

Poles	Part No,	Dimensions mm
Poles	Part No,	4
2	BF25400-2Y	2.54	5.08
3	BF25400-3Y	5.08	7.62
4	BF25400-4Y	7.62	10.16
5	BF25400-5Y	10.16	12.7
6	BF25400-6Y	12.7	15.24
7	BF25400-7Y	15.24	17.78
8	BF25400-8Y	17.78	20.32
9	BF25400-9Y	20.32	22.86
10	BF25400-10Y	22.86	25.4
11	BF25400-11Y	25.4	27.94
12	BF25400-12Y	27.94	30.48
13	BF25400-13Y	30.48	33.02
14	BF25400-14Y	33.02	35.56
15	BF25400-15Y	35.56	38.1
16	BF25400-16Y	38.1	40.64
17	BF25400-17Y	40.64	43.18
18	BF25400-18Y	43.18	45.72
19	BF25400-19Y	45.72	48.26
20	BF25400-20Y	48.26	50.80

WAFER

Poles	Part No.		Dimensi	ons mm
Poles	Part No.		A	B
2	BF25400-2A	BF25400-2AW	2.54	5.08
3	BF25400-3A	BF25400-3AW	5.08	7.62
4	BF25400-4A	BF25400-4AW	7.62	10.16
5	BF25400-5A	BF25400-5AW	10.16	12.7
6	BF25400-6A	BF25400-6AW	12.7	15.24
7	BF25400-7A	BF25400-7AW	15.24	17.78
8	SH25400-8A	BF25400-8AW	17.78	20.32
9	BF25400-9A	BF25400-9AW	20.32	22.86
10	BF25400-10A	BF25400-10AW	22.86	25.4
11	BF25400-11A	BF25400-11AW	25.4	27.94
12	SH25400-12A	BF25400-12AW	27.94	30.48
13	BF25400-13A	BF25400-13AW	30.48	33.02
14	BF25400-14A	BF25400-14AW	33.02	35.56
15	BF25400-15A	BF25400-15AW	35.56	38.1
16	BF25400-16A	BF25400-16AW	38.1	40.64
17	BF25400-17A	BF25400-17AW	40.64	43.18
18	BF25400-18A	BF25400-18AW	43.18	45.72
19	BF25400-19A	BF25400-19AW	45.72	48.26
20	BF25400-20A	BF25400-20AW	48.26	50.8
