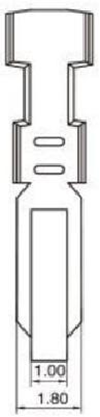

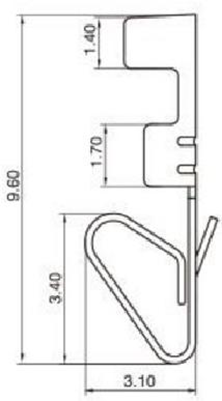

BF25402-T(2510)
| Part No. | Wire Range | Insulation O.D | . Material Finish |
| BF25402-T | AWG#28-#22 | 1.00-1.60mm | Phosphor bronze Tin-plated |
BF 25402-Y(2510)
BF 25402-A
BF 25402-AW

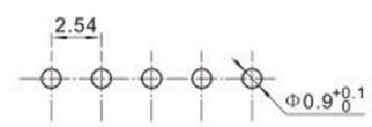

安装尺寸
HOUSING
| Poles | Part.No. | Dimensions mm | |
| A | B | ||
| 2 | BF25402-2Y | 2.54 | 5.7 |
| 3 | BF25402-3Y | 5.08 | 8.1 |
| 4 | BF25402-4Y | 7.62 | 10.85 |
| 5 | BF25402-5Y | 10.16 | 13.51 |
| 6 | BF25402-6Y | 12.7 | 16.05 |
| 7 | BF25402-7Y | 15.24 | 18.59 |
| 8 | BF25402-8Y | 17.78 | 21.13 |
| 9 | BF25402-9Y | 20.32 | 23.67 |
| 10 | BF25402-10Y | 22.86 | 26.21 |
| 11 | BF25402-11Y | 25.4 | 28.75 |
| 12 | BF25402-12Y | 27.94 | 31.29 |

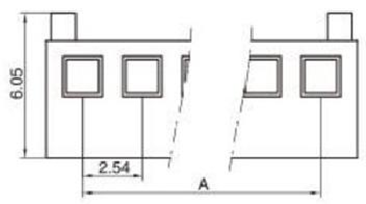

WAFER
| Poles | Part.No | Dimensions mm | ||
| A | B | |||
| 2 | BF25012-2A | BF25012-2AW | 2.54 | 5.08 |
| 3 | BF25012-3A | BF25012-3AW | 5.08 | 7.62 |
| 4 | BF25012-4A | BF25012-4AW | 7.62 | 10.16 |
| 5 | BF25012-5A | BF25012-5AW | 10.16 | 12.7 |
| 6 | BF25012-6A | BF25012-6AW | 12.7 | 15.24 |
| 7 | BF25012-7A | BF25012-7AW | 15.24 | 17.78 |
| 8 | BF25012-8A | BF25012-8AW | 17.78 | 20.32 |
| 9 | BF25012-9A | BF25012-9AW | 20.32 | 22.86 |
| 10 | BF25012-10A | BF25012-10AW | 22.86 | 25.4 |
| 11 | BF25012-11A | BF25012-11AW | 25.4 | 27.94 |
| 12 | BF25012-12A | BF25012-12AW | 27.94 | 30.48 |
