规格 Specifications
1、 Poles:2
2、 Current rating:1.0A AC/DC
3、Voltage rating:1400V AC/DC
4、Temperature range:-25C to+85C
5、Contact resistance: <20mΩ
6、 Insulation resistance:>1000MΩ
7、Withstand voltage:3800V AC/minute
8、 Applicable wire:AWG#28to#24
9、Material:
Housing:Nylon66 UL94 V-0
Terminal:Phos.Bronze Tin-Plated
Pin: Phos.Bronze Tin-Plated
Soldertabs: Brass Tin-Plated
Base:Nylon 6T UL94 V-0

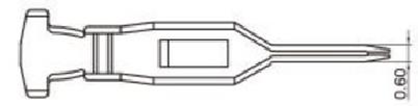

BF 35001-PT
| Part No. | Wire Range | Insulation O.D. | Material | Finish |
| BF35001-PT | AWG#28-#24 | 1.60mm(max) | Phosphor bronze | Tin-plated |
BF35001-P

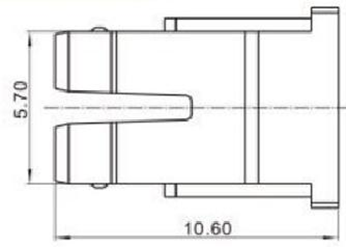

BT 35001-RT
| Part No. | Wire Range | Insulation O.D Material Finish | ||
| BF35001-RT | AWG#28-#24 | 1.60mm(max) | Phosphor bronze | Tin-plated |
BF 35001-R

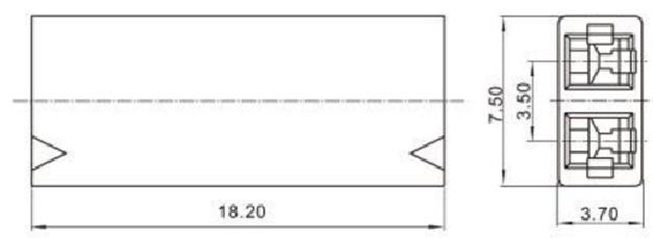

BF 35001-AW

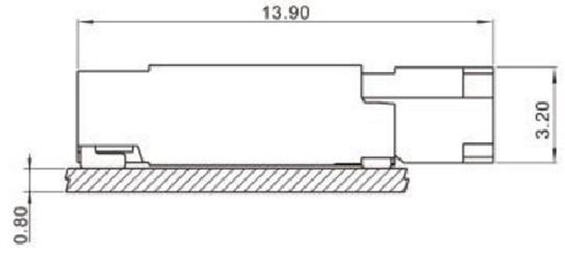

BF 35001-AW-S

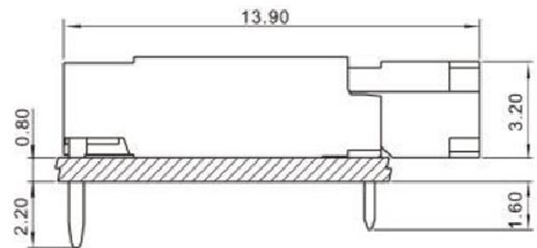

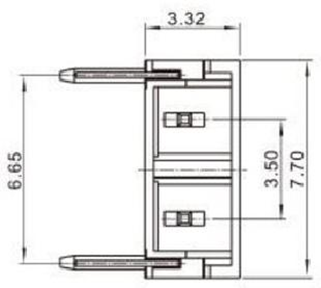

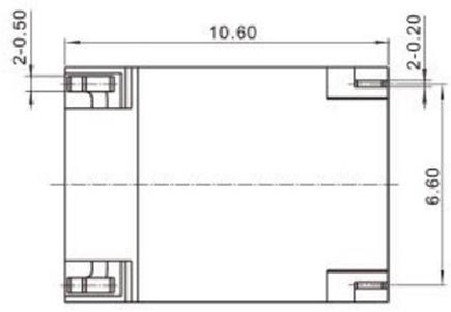

Mounting Dimensions(90°)
