BF39601-TJC6 connector housing

规格 Specifications

1、 极数Poles:2  to  16

2、额定电流 Current rating:5.0A AC/DC 3、额定电压Voltage rating:250V AC/DC

4、温度范围 Temperature range:-25°C to+85°C

5、 接触电阻 Contact   resistance:   ≤10mΩ

6、 绝缘电阻 Insulation        resistance:≥1000MΩ

7、 耐压Withstand   voltage:1500V   AC/minute

8、 适用线规 Applicable       wire:AWG#22to#18

9、 适应基板厚度Applicable PC board thickness:1.6mm

10、材料 Material:

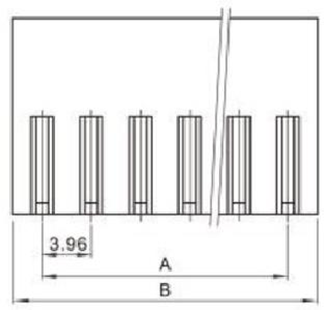

孔座 Housing:Nylon66 UL94 V-0

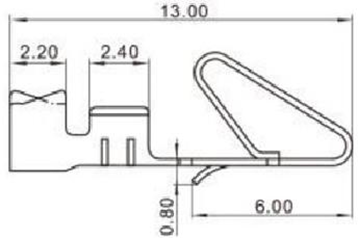

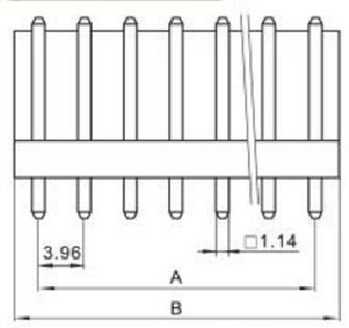

端子 Terminal:磷青铜Phos.Bronze Tin-Plated 针座Wafer:

针Pin:黄铜镀锡 Brass Tin-Plated

塑座Base:Nylon 66 UL94 V-0
