BF39603-35156 electrical wire connectors

Specifications

1、 Poles:2 to12

2、 Current rating:7.0A AC/DC

3、 Voltage rating:250V AC/DC

4、 Temperature range:-25°C to+85°C

5、 Contact resistance: ≤15mΩ

6、 Insulation resistance: ≥1000MΩ

7、 Withstand voltage:1500V AC/minute

8、 Applicable wire:AWG#24to#18

9、 Material:

Housing:Nylon66 UL94 V-0

Terminal:Phos.Bronze Tin-Plated

Product introduction

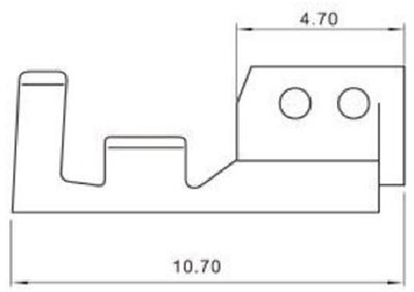

BF 39603-T(50217-8000)

Part No,	Wire Range	Insulation O.D	Material	Finish
BF39603-T	AWG#24-#18	1.40~3.00mm	Phosphor bronze	Tin-plated

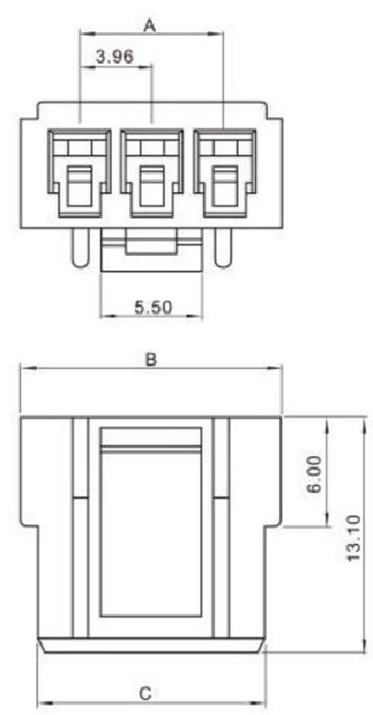

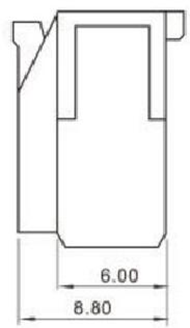

BF 39603-Y(35156)

HOUSING
