SPECIFICATIONS
Applicable wires : AWG24#~14#
Temperature range: -25 ·c~85 °C
Voltage rating : 300V.Ac/Dc
Curren t ra ting : 15A max
Contact resistance: ≤0.01 Ω
Insulat ion resistance : ≥ 1000MΩ
W ithstand voltage : 2000V. Ac/1 min
Material :
Housing：PA66 UL94V-2(0)
Terminal : Brass Tin/plated
Term inal Lock ing Force : 8.5kg/min
Retentive Force : 5.0kg/m in

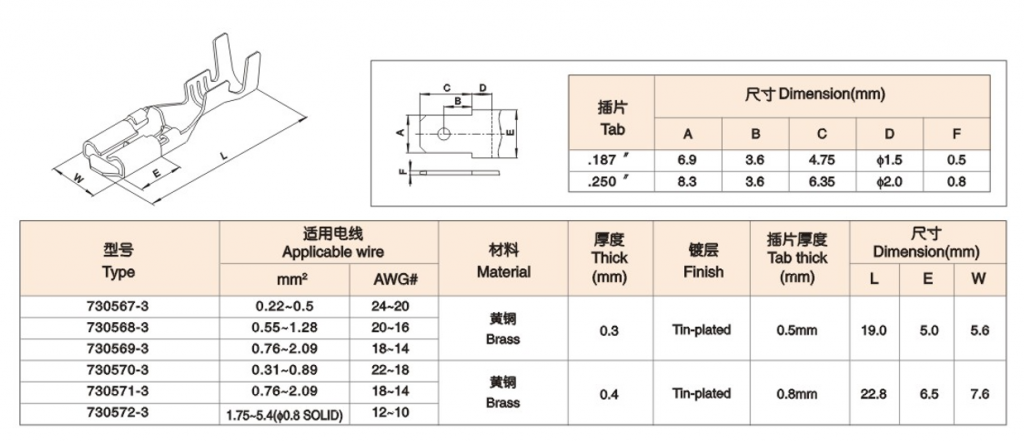

4.8(.187”) 端子TERMINAL
| Type | Adaptation of wire gauge | Material | Dimensions (mm) | Quantity | |||||
| mm2 | AWG# | W | L | E | Thickness | ||||
| BF4.8S-01T | 730567-3 | 0.22~0.5 | 24~20 | Brass | 5.6 | 19.3 | 5.1 | 0.3 | 1000PCS |
| BF4.8S-21T | 7305683-3 | 0.55~1.3 | 20~16 | 5.6 | 19.3 | 5.1 | 0.3 | 8000PCS | |
| BF4.8S-41T | 730569-3 | 0.76~2.1 | 18~14 | 5.6 | 19.3 | 5.1 | 0.3 | 6000PCS | |

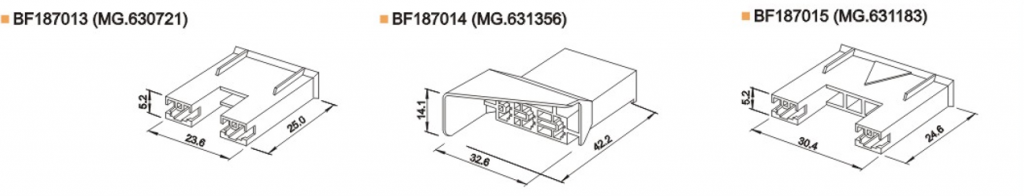

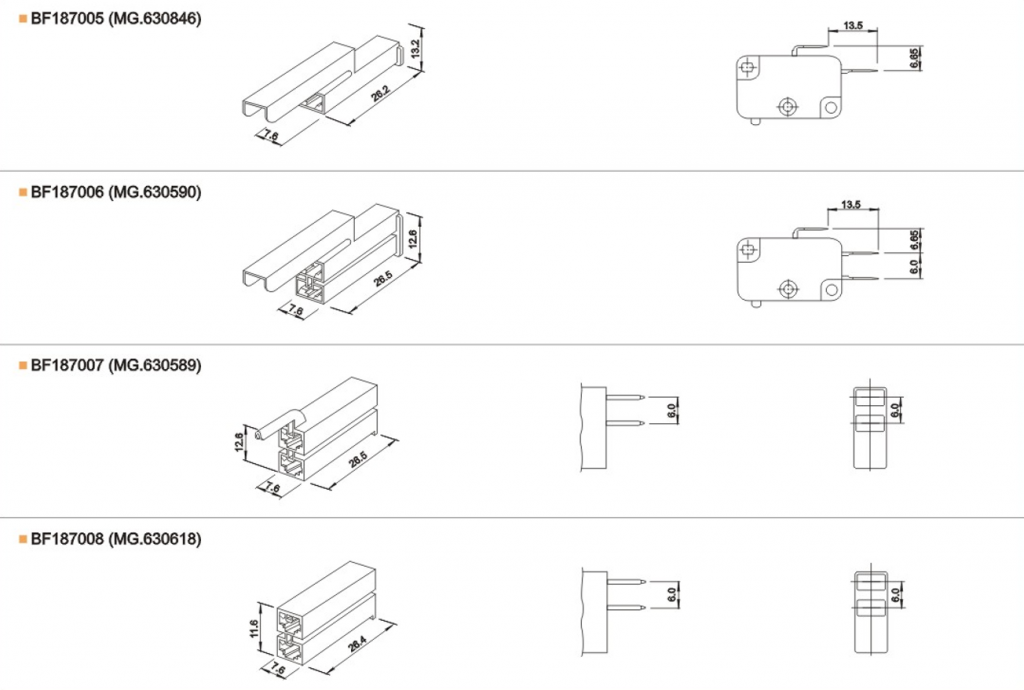

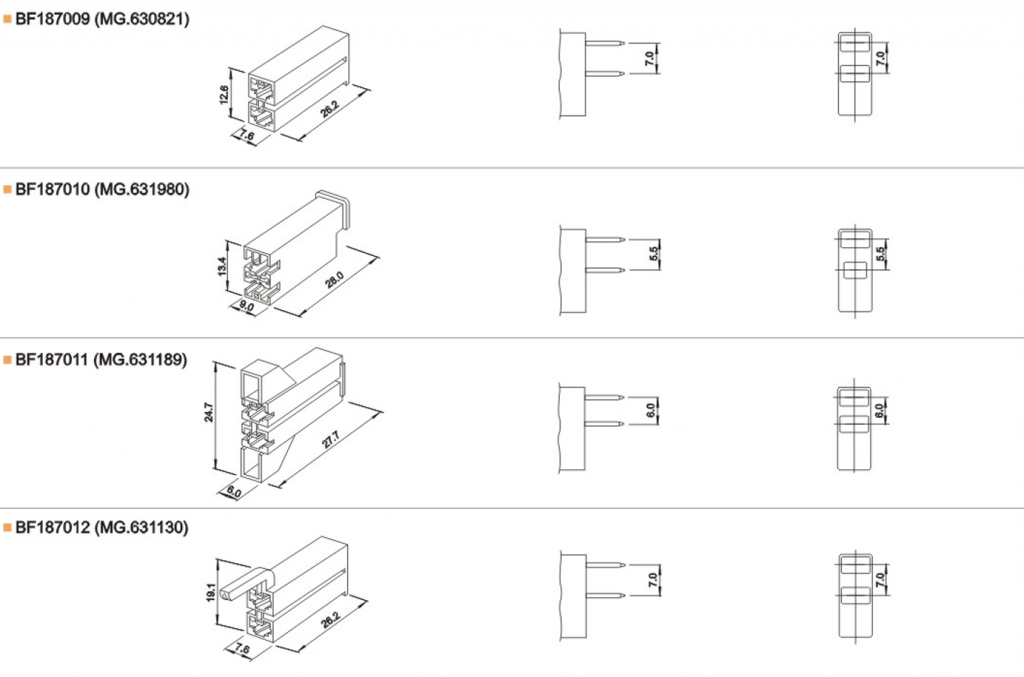

4. 8(.187”) housing

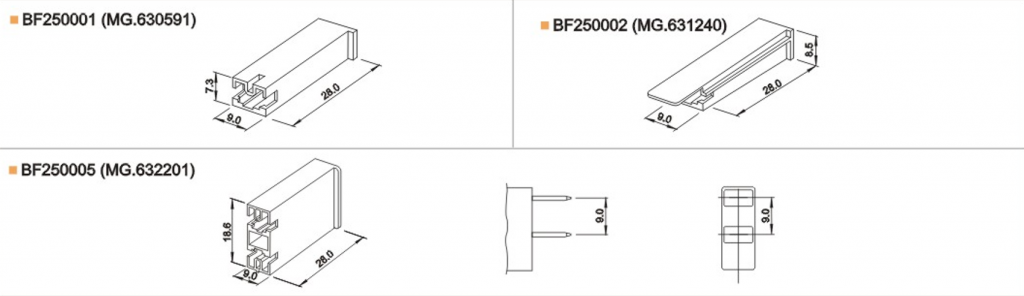

Housing 6.3(.250”)
