BF41401-FL

Specifications

1、Poles;1、2、3、4、6、9、12、15

2、 Current rating:10~8A AC/DC

3、Voltage rating:300V AC/DC

4、 Temperature range:-25°C to+85°C

5、 Contact resistance: ≤15mΩ

6、 Insulation resistance:≥1000MΩ

7、Withstand voltage:1500V AC/minute

8、 Applicable wire:AWG#26to#20

9、 Housing:Nylon66 UL94 V-0

Terminal:Phos.Bronze Tin-Plated

Product introduction

BF 41401-PT

Part No.	Wire Range	Insulation O.D	Material	Finish
BF41401-PT	AWG#26-#20	1.10~1.90mm	Phosphor bronze	Tin-plated

BF 41401-RT

Part NoWire Range	Insulation O.D Material Finish
BF41401-RT AWG#26-#20	1.10~1.90mm	Phosphor bronze	Tin-plated

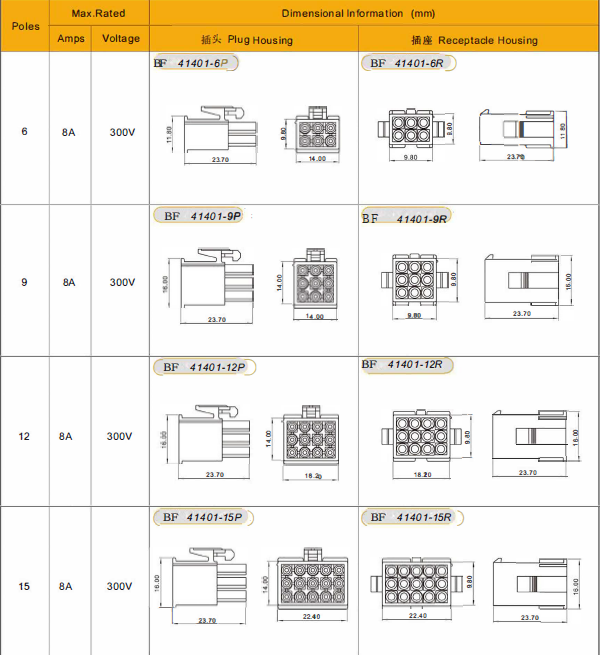

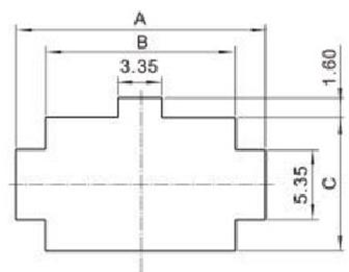

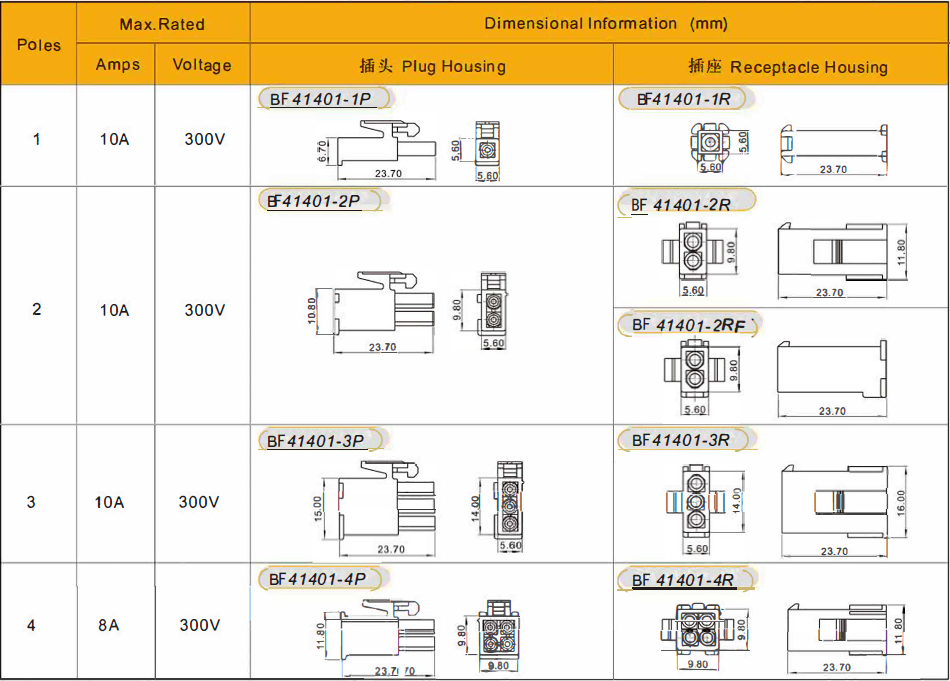

Installation Size
