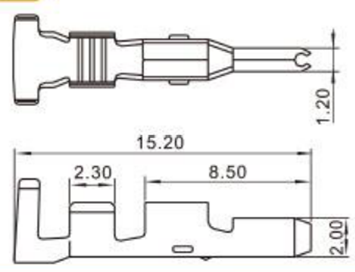

BF 42001-PT
| Part No. | WIre Range | Insulatlon O.D | Materlal | Finish |
| BF 42001-PT | AWG#24-#18 | 1.80~2.80mm | Phosphor bronze | Tin-plated |
BF 42001-RT
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| BF 42001-RT | AWG#24-#18 | 1.80~2.80mm | Phosphor bronze | Tin-plated |
Products

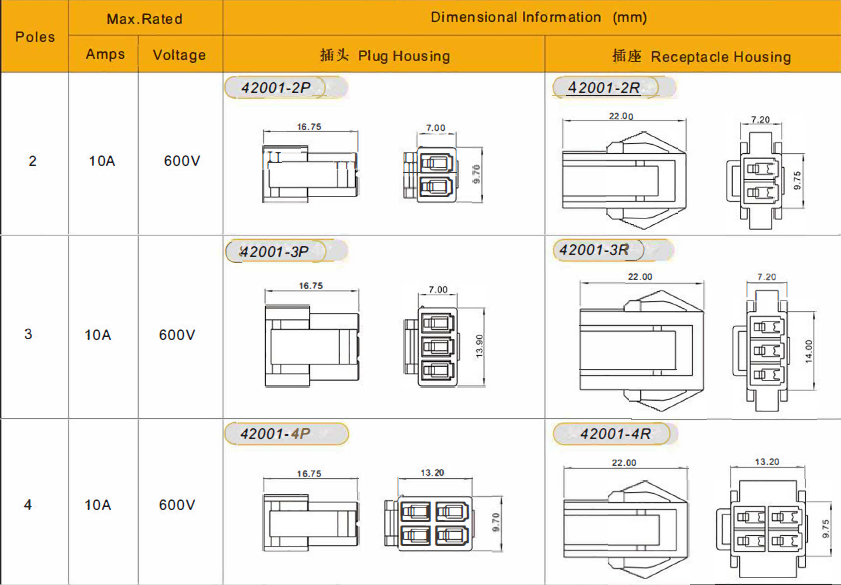

BF42001-SL-RV
Specifications
1、 Poles:2、3、4
2、 Current rating:10A AC/DC
3、 Voltage rating:600V AC/DC
4、Temperature range:-25°C to+85°C
5、 Contact resistance: ≤15mΩ
6、 Insulation resistance;≥1000MΩ
7、 Withstand voltage:1500V AC/minute
8、 Applicable wire:AWG#24to#18
9、 Material:
Housing:Nylon66 UL94 V-0
Terminal:Phos.Bronze Tin-Plated
