BF42004-5566-5569 2 pin connector

BF42004-5566-5569

BF42004-5566-5569 2 pin connector

Specifications

1、 Poles:2 to24

2、Current rating:9.0A AC/DC

3、Voltage rating:300V AC/DC

4、 Temperature range:-25°C to+85°C

5、Contact resistance: ≤15mΩ

6、 Insulation resistance: ≥1000MΩ

7、 Withstand voltage:1500V AC/minute

8、 Applicable wire:AWG#28to#20

9、 Material:

Wafer:

Pin: Barss Tin-Plated

Base:Nylon66 UL94 V-0 or UL94V-2

Terminal: Phos.Bronze Tin-Plated

Product introduction

BF 42003-A(5566)

BF 42004-A(5569)

BF 42005-A(5569)

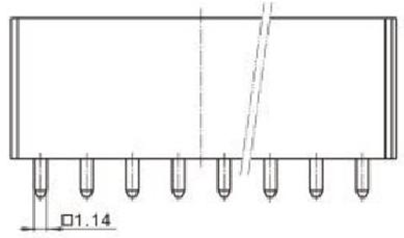

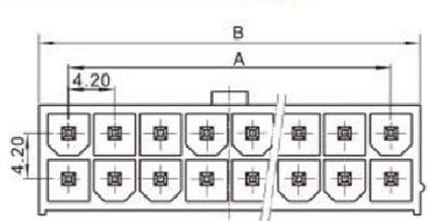

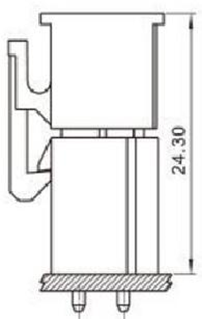

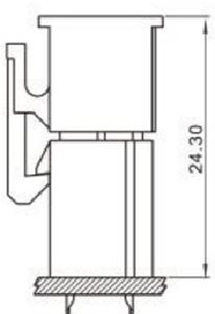

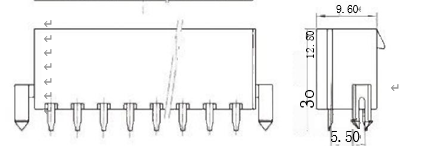

Mounting Dimensions

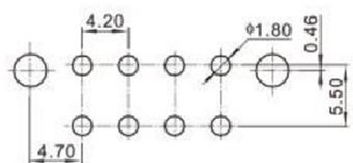

Mounting Dimensions

Wafer

Poles	Part No			Dimensions mm
Poles	Part No			A	B
2×1	BF42003-2A	BF42004-2A	BF42005-2A	0	5.6
2×2	BF42003-4A	BF42004-4A	BF42005-4A	4.2	9.8
2×3	BF42003-6A	BF42004-6A	BF42005-6A	8.4	14
2×4	BF42003-8A	BF42004-8A	BF42005-8A	12.6	18.2
2×5	BF42003-10A	BF42004-10A	BF42005-10A	16.8	22.4
2×6	BF42003-12A	BF42004-12A	BF42005-12A	21	26.6
2×7	BF42003-14A	BF42004-14A	BF42005-14A	25.2	30.8
2×8	BF42003-16A	BF42004-16A	BF42005-16A	29.4	35
2×9	BF42003-18A	BF42004-18A	BF42005-18A	\|33.60	39.2
2×10	BF42003-20A	BF42004-20A	BF42005-20A	37.8	43.4
2×11	BF42003-22A	BF42004-22A	BF42005-22A	42	47.6
2×12	BF42003-24A	BF42004-20A	BF42005-20A	46.2	51.8
