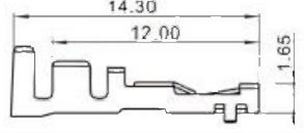

BF 45002-PT
| Part No. | Wire Range Insulation O.D | Material | Finish | |
| BF 45002-PT | AWG#26-#20 | 1.30~2.50mm | Phosphor bronze | Tin-plated |

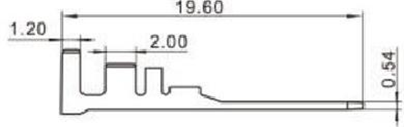

BF 45002-RT
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| BF 45002-RT | AWG#26-#20 | 1.30~2.50mm | Phosphor bronze | Tin-plated |
Products
BF45002-YL
Specifications

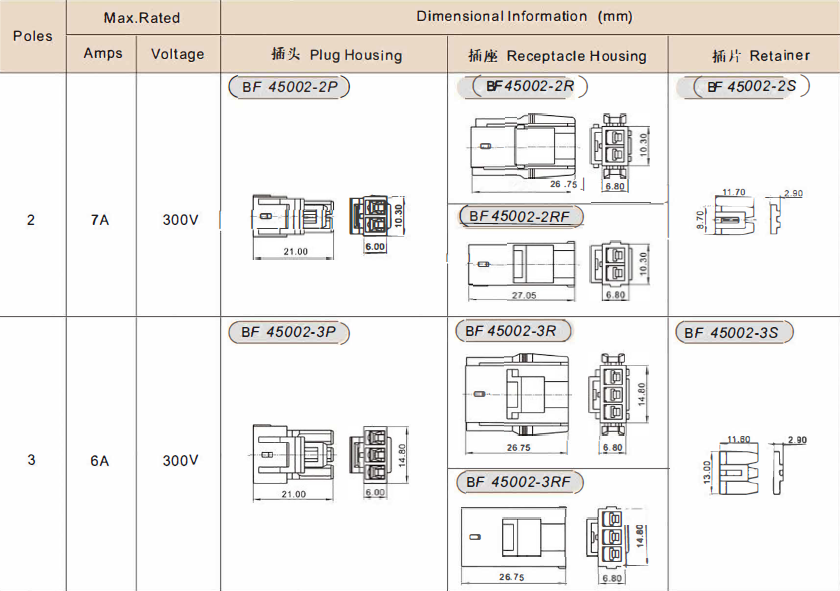

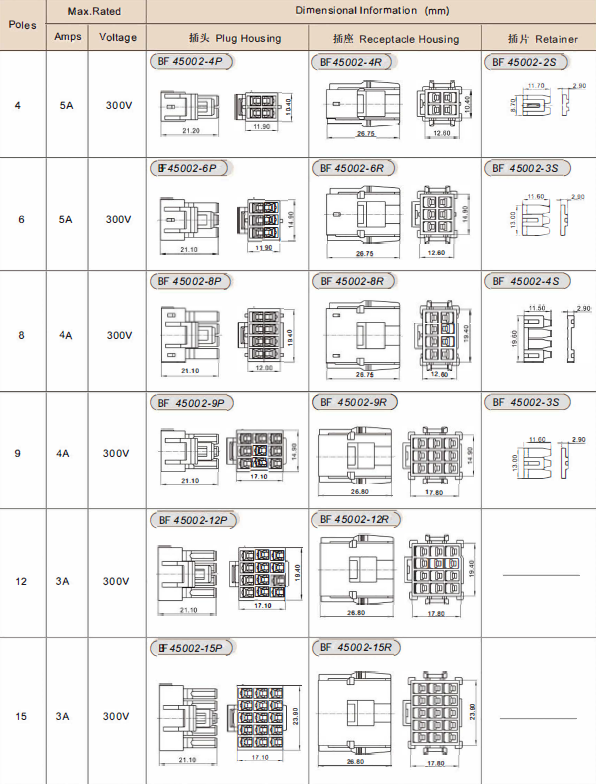

1、Poles:2、3、4、6、8、9、12、15
2、 Current rating:7~3A AC/DC
3、 Voltage rating:300V AC/DC
4、 Temperature range:-25°C to+85°C
5、Contact resistance: ≤15mΩ
6、 Insulation resistance: ≥1000MΩ
7、 Withstand voltage:1500V AC/minute
8、 Applicable wire:AWG#26to#20
9、 Material:
Housing:Nylon66 UL94 V-0
Terminal:Phos.Bronze Tin-Plated
