.187″/.250” TERMINAL

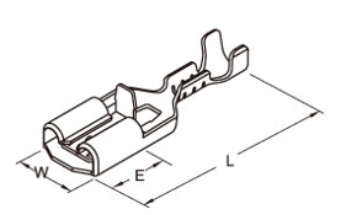

| Type | Applicable wires | Dimensions(mm) | Quantity | ||||
| mm2 | AWG# | W | L | E | Thickness | ||
| BF4.8S-01T | 0.22~0.5 | 24～20 | 5.6 | 19.3 | 5.1 | 0.3 | 10000PCS/roll |
| BF4.8S-21T | 0.55~1.3 | 20~16 | 5.6 | 19.3 | 5.1 | 0.3 | 8000PCS/roll |
| BF4.8S-41T | 0.76~2.1 | 18~14 | 5.6 | 19.3 | 5.1 | 0.3 | 6000PCS/roll |
| BF6.3S-21T | 0.76~2.1 | 18~14 | 7.6 | 23.2 | 6.6 | 0.4 | 5000PCS/roll |
| BF6.3S-41T | 3.1~5.4 | 12~10 | 7.6 | 23.2 | 6.6 | 0.4 | 4500PCS/roll |
BF4.8S-T BF6.3S-T
BF4.8GS-T BF6.3GS-T
| Type | Dimensions(mm) | ||||
| A | B | C | D | F | |
| .187” (4.8) | 7 | 3.6 | 4.8 | φ1.5 | 0.5 |
| .250 ”(6.3) | 8.3 | 3.8 | 6.35 | φ2.0 | 0.8 |

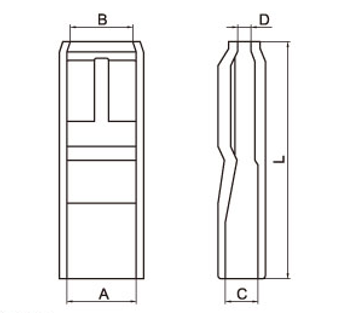

| Series | Type | Specs | Dimensions(mm) | Suitable Terminal | ||||
| L | A | B | C | D | ||||
| 187 Vertical softwith locking | BF48003 | DE 187F | 22.2 | 6 | 5 | 4 | 1.1 | BF4.8S-01T BF4.8S-21T BF4.8S-41T |
| 250 Vertical softwith locking | BF63003 | DE 250F | 26 | 8 | 7 | 5.5 | 1.25 | BF6.3S-21T BF6.3S-41T |
| Series | Type | Specs | Dimensions(mm) | Suitable Terminal | ||||
| L | A | B | C | D | ||||
| 187 Vertical softwith locking | BF48003 | DE 187ES | 22 | 6 | 5 | 2.75 | 1.1 | BF4.8GS-01T BF4.8GS-21T BF4.8GS-41T |
| 250 Vertical softwith locking | BF63003 | DE 250ES | 26 | 8 | 7 | 3.55 | 1.25 | BF6.3GS-21T BF6.3GS-31T BF6.3GS-41T |
