BF 50002-T
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| BF 50002-T | AWG#24-#16 | 1.90~3.10mm | Phosphor bronze | Tin-plated |
BF 50002-2P（1376388-2P）
BF 50002-3P(1376389-3P)
BF 50002-A

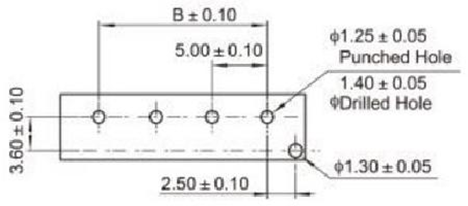

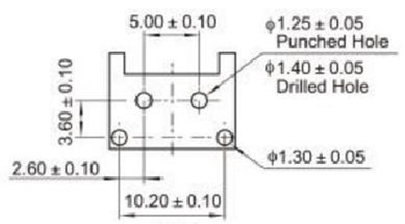

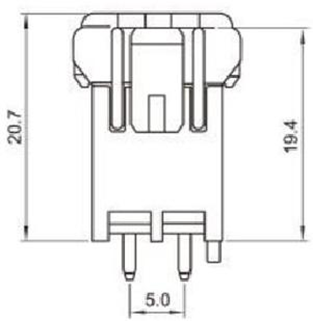

Mounting Dimensions(180°)

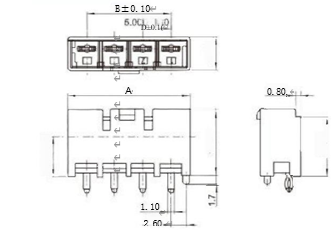

WAFER
| Poles | Part.No. | Dimensions mn | |
| A | B | ||
| 2 | BF50002-2A | 11.6 | |
| 3 | BF50002-3A | 16.6 | 10 |
| 4 | BF50002-4A | 21.6 | 15 |
| 6 | BF50002-6A | 31.6 | 25 |
BF 50002-2S(1376394-1)

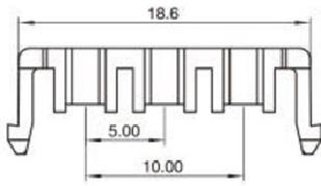

BF 50002-3S(1376395-1)

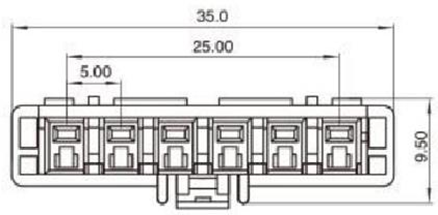

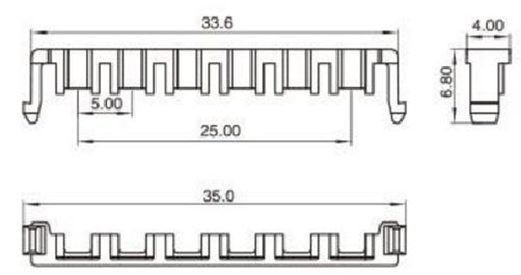

BF 50002-6S(1376397-1)

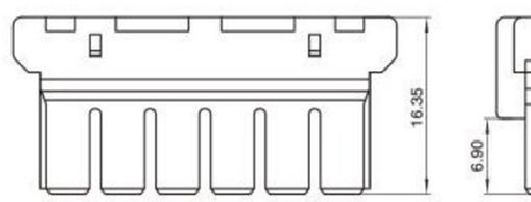

BF 50002-1 *6P(1376391-1)
