Specifications
1、 Poles:2、3、4、6
2、 Current rating:10AAC/DC
3、 Voltage rating:300VAC/DC
4、 Temperature range:-30℃ to +105℃
5、 Contact resistance:≤20mΩ
6、 Insulation resistance:≥1000MΩ
7、 Withstand voltage:500V AC/minute
8、 Applicable wires:AWG#24 to #16
9、 Applicable PC board thickness:1.6mm
10、 Material:
Housing:Nylon66 UL94V-0
Terminal:Phos.Bronze Tin-Plated
BF 50002-T
| Part No | Wire Range | Insulation O.D | Material | Finish |
| BF 50002-T | AWG#24-#16 | 1.90~3.10mm | Phosphor bronze | Tin-plated |

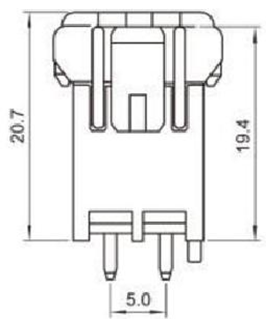

BF 50002-4P（1376392-4P）
BF 50002-6P(1376393-6P)
SH 50002-A(双排)

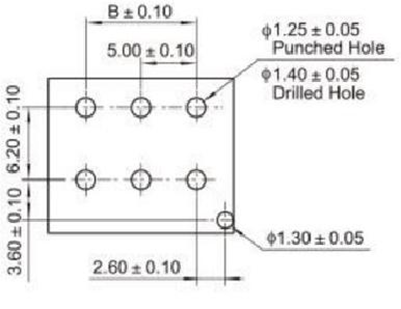

Mounting Dimensions(180°）

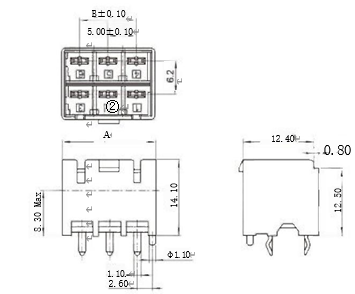

WAFER
| Poles | Part.No. | Dimensions mm | |
| A | B | ||
| 4 | BF50002-4A | 11.6 | |
| 6 | BF50002-6A | 16.6 | 10 |
