6.3(.250″) TERMINAL
| Type | Applicable wires | Material | Dimensions(mm) | Quantity | |||||
| mm² | AWG# | W | L | E | Thickness | ||||
| BF630-61TQ | SFO-61T-250A | 0.75~2.0 | 18-14 | Brass | 8 | 15.3 | 7.7 | 0.43 | 4000PCS/roll |
BF630-61TQ
| Type | Dimensions(mm) | ||||
| A | B | C | D | F | |
| 6.3(.250‘’) | 8.3 | 3.8 | 6.35 | φ2.0 | 0.8 |

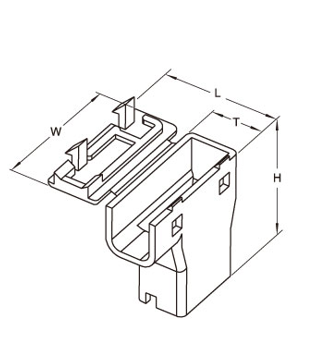

6.3(.250″) HOUSING
| Series | Type | Dimensions(mm) | Suitable Terminal | |||
| L | T | W | H | |||
| 250 Flag type | BF630-250QX | 14.5 | 6.6 | 16.6 | 16.5 | BF 630-61TQ |
