Specifications
1、 Poles:6
2、 Current rating:15~10AAC/DC
3、Voltage rating:300VAC/DC
4、Temperature range:-30℃ to +90℃
5、 Contact resistance:≤10mΩ
6、 Insulation resistance:≥1000MΩ
7、 Withstand voltage:1500V AC/minute
8、 Applicable wires:AWG#20 to #14
9、 Material:
Housing:Nylon66 UL94V-0
Terminal:Phos.Bronze Tin-Plated

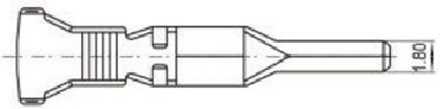

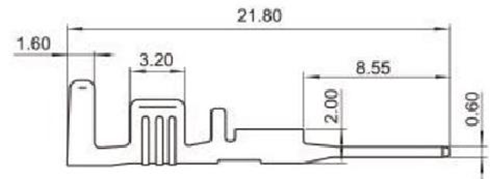

BF 60001-PT
| Part No | Wire Range | Insulation 0.D. | Material | Finish |
| BF 60001-PT | AWG#20-#14 | 1.00mm(max) | Phosphor bronze | Tin-plated |

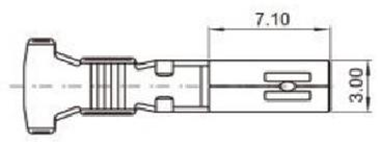

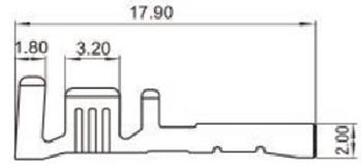

BF 60001-RT
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| BF 60001-RT | AWG#20-#14 | 1.00mm(max) | Brass | Tin-plated |

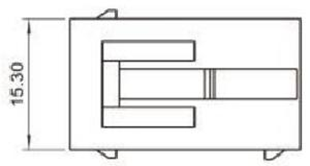

BF 60001-6P

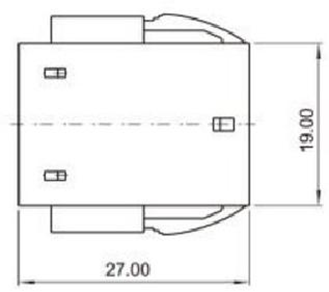

BF 60001-6R
