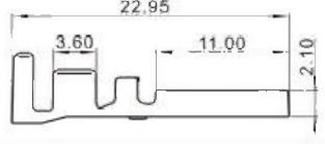

BF 62001-PT
| Part No | Wire Range | Insulation O.D. | Material | Finish |
| BF62001-PT | AWG#18-#14 | 2.70~3.40mm | Phosphor bronze | Tin-plated |
BF 62001-RT
| Part No | Wire Range | Insulation 0.D. | Material | Finish |
| BF62001-RT | AWG#18-#14 | 2.70~3.40mm | Phosphor bronze | Tin-plated |
Products

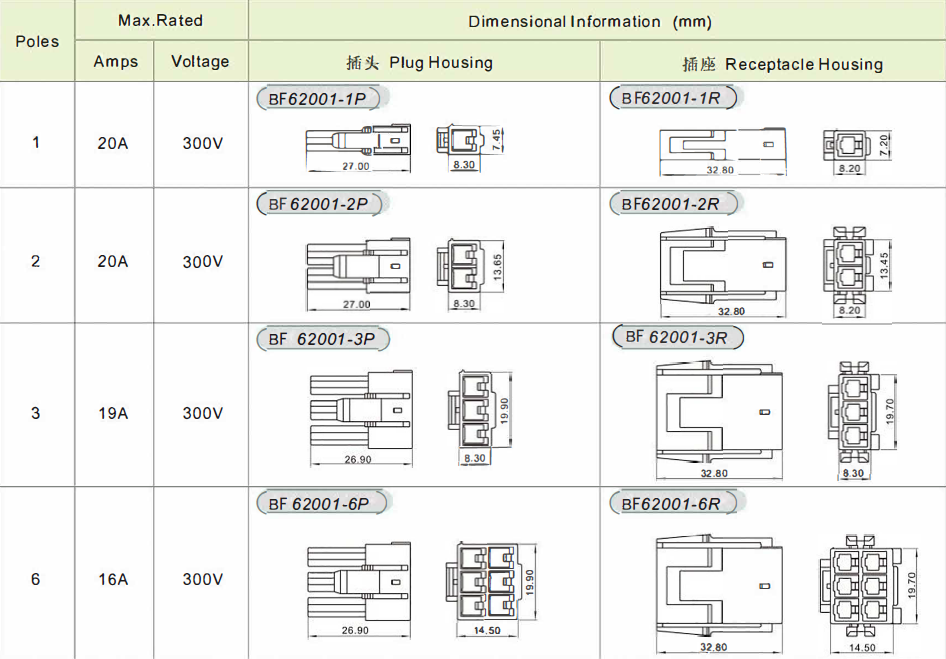

BF62001-VL-K
Specifications
1、Poles:1、2、3、6
2、 Current rating:20A AC/DC
3、Voltage rating:300V AC/DC
4、 Temperature range:-25°C to+85°C
5、Contact resistance:≤10mΩ
6、 Insulation resistance: ≥1000MΩ
7、Withstand voltage:1500V AC/minute
8、Applicable wire:AWG#18to#14
9、 Applicable PC board thickness:1.6mm
10、 Material:
Housing:Nylon66 UL94 V-0
Terminal:Phos.Bronze Tin-Plated
