BF75000-TJC2 amp connector

Specifications

1、Poles:1to   6

2、 Current     rating:4.0A     AC/DC

3、Voltage  rating:250V  AC/DC

4、  Temperature  range:-25°C to+85°C

5、 Contact resistance: ≤10mΩ

6、  Insulation     resistance:   ≥1000MΩ

7、 Withstand voltage:1500V AC/minute

8、  Applicable     wire:AWG#26to#20

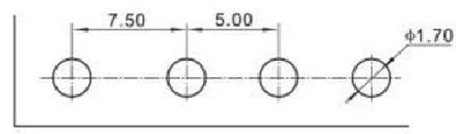

9、 Applicable  PC  board  thickness:1.6mm

10、  Material:

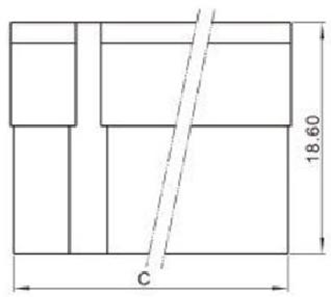

Housing:Nylon66 UL94 V-0

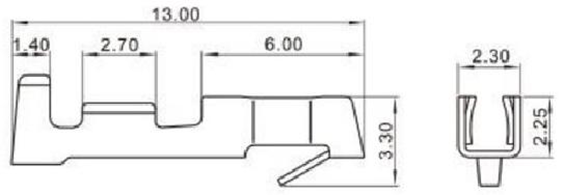

Terminal:Phos.Bronze  Tin-Plated

Wafer:

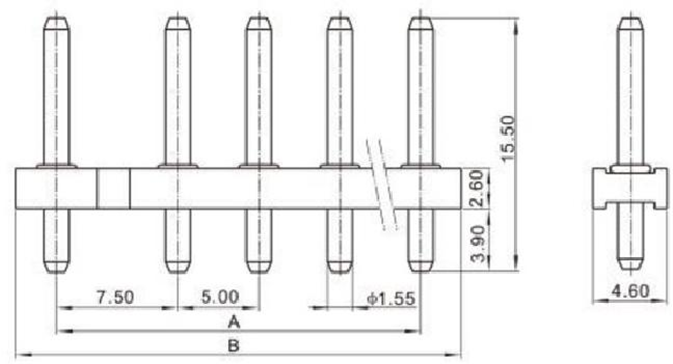

Pin: Brass Tin-Plated

Base:Nylon 66 UL94 V-0
