Specifications
1、 Poles:2to 6
2、 Current rating:4.0A AC/DC
3、Voltage rating:250V AC/DC
4、 Temperature range:-25°C to+85°C
5、 Contact resistance: ≤10mΩ
6、 Insulation resistance: ≥1000MΩ
7、 Withstand voltage:1500V AC/minute
8、 Applicable wire:AWG#26to#20
9、 Applicable PC board thickness:1.6mm
10、 Material:
Housing:Nylon66 UL94 V-0
Terminal:Phos.Bronze Tin-Plated
Wafer:
Pin: Brass Tin-Plated
Base:Nylon 66 UL94 V-0

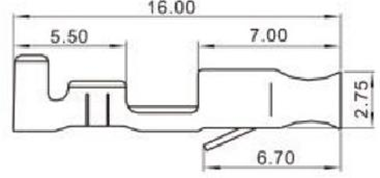

BF 75002-T
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| BF 75002-T | AWG#26-#20 | 1.30~2.70mm | Phosphor bronze | Tin-plated |
BF 75002-Y
SH 75002-A

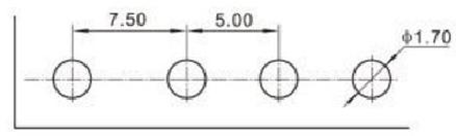

安装尺寸
HOUSING
| Poles | Part No | Dimensions mm | |
| A | B | ||
| 2 | BF75002-2Y | 7.5 | 16 |
| 3 | BF75002-3Y | 12.5 | 21 |
| 4 | BF75002-4Y | 17.5 | 26 |
| 5 | BF75002-5Y | 22.5 | 31 |
| 6 | BF75002-6Y | 27.5 | 36.5 |

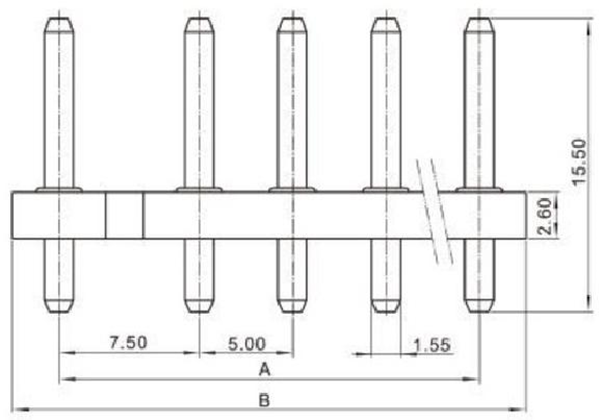

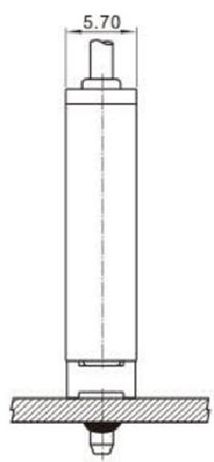

WAFER
| Poles | Part No. | Dimensions mm | |
| A | B | ||
| 2 | BF75002-2A | 7.5 | 12.6 |
| 3 | BF75002-3A | 12.5 | 17.6 |
| 4 | BF75002-4A | 17.5 | 22.6 |
| 5 | BF75002-5A | 22.5 | 27.6 |
| 6 | BF75002-6A | 27.5 | 32.6 |
