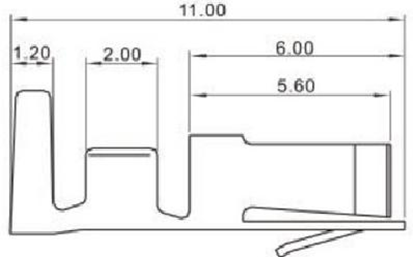

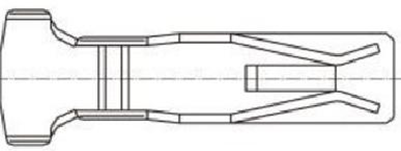

BF 75003-T
| Part No. | Wire Range | Insulation O.D. Materia | Finish | |
| BF 75003-T | AWG#26-#20 | 1.30~2.70mm | Phosphor bronze | Tin-plated |
BF 75003-Y

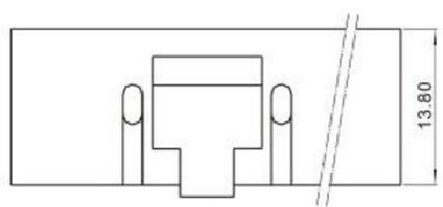

HOUSING

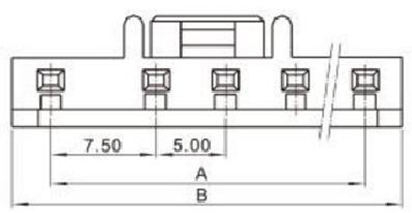

| Poles | Part No. | Dimensions mm | |
| A | B | ||
| 3 | BF75003-3Y | 12.5 | 17.9 |
| 4 | BF75003-4Y | 17.5 | 22.9 |
| 5 | BF75003-5Y | 22.2 | 27.9 |
Products
BF75003-YHL-500 connectors xlr
Specifications
1、 Poles:3 to5
2、 Current rating:4.0A AC/DC
3、 Voltage rating:250V AC/DC
4、Temperature range:-25°C to+85°C
5、 Contact resistance:≤10mΩ
6、 Insulation resistance: ≥1000MΩ
7、 Withstand voltage:1500V AC/minute
8、 Applicable wire:AWG#26 to #20
9、 Material:
Housing:Nylon66UL94V-0
Terminal:Phos.Bronze Tin-Plated
