Specifications
1、 Poles:1 to 6
2、 Current rating:4.0A AC/DC
3、 Voltage rating:250V AC/DC
4、Temperature range:-25°C to+85°C
5、 Contact resistance: ≤10mΩ
6、 Insulation resistance: ≥1000MΩ
7、 Withstand voltage:1500V AC/minute
8、 Applicable wire:AWG#24to#18
9、 Applicable PC board thickness:1.6mm
10、Material:
Housing:Nylon66 UL94 V-0
Terminal: Phos.Bronze Tin-Plated
Wafer:
Pin: Brass Tin-Plated
Base:Nylon 66 UL94V-0
BF 80000-T
| Part No. | Wire Range | Insulation O.D | Material Finish | |
| BF80000-T | AWG#24-#18 | 1.50~3.20mm | Phosphor bronze | Tin-plated |
BF 80000-Y
BF 80000-A

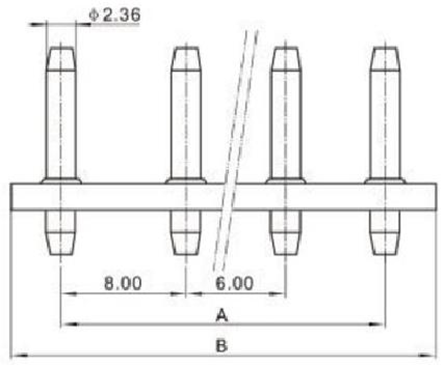

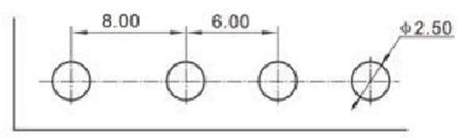

Mounting Dimensions
HOUSING
| Poles | Part No | Dimensions mm | |
| A | B | ||
| 2 | BF80000-2Y | 8 | 13.7 |
| 3 | BF80000-3Y | 14 | 19.7 |
| 4 | BF80000-4Y | 20 | 25.7 |
| 5 | BF80000-5Y | 26 | 31.7 |
| 6 | BF80000-6Y | 32 | 37.7 |
WAFER
| Poles | Part No. | Dimensions mm | |
| A | B | ||
| 2 | BF80000-2A | 10 | 16 |
| 3 | BF80000-3A | 18 | 22 |
| 4 | BF80000-4A | 26 | 28 |
| 5 | BF80000-5A | 34 | 34 |
| 6 | BF80000-6A | 42 | 40 |
