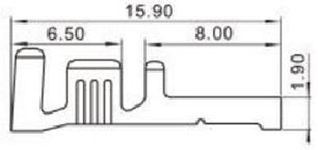

BF 18001-01PT(730459-3)
BF 18001-02PT(730460-3)
| Part No | Wire Range | Insulation 0.D | Material | Finish |
| BF18001-PT | AWG#26-#18 | 1.30~3.00mm | Phosphor bronze | Tin-plated |

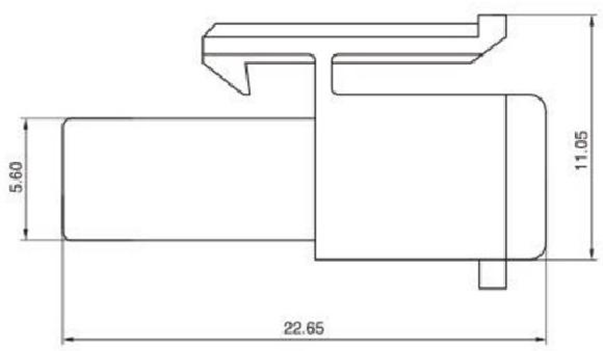

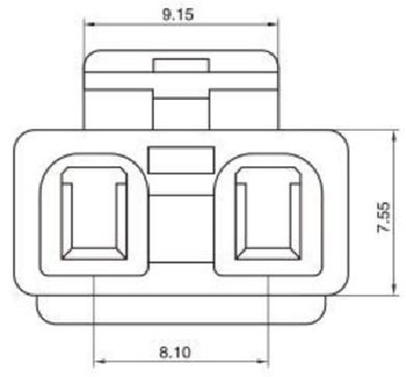

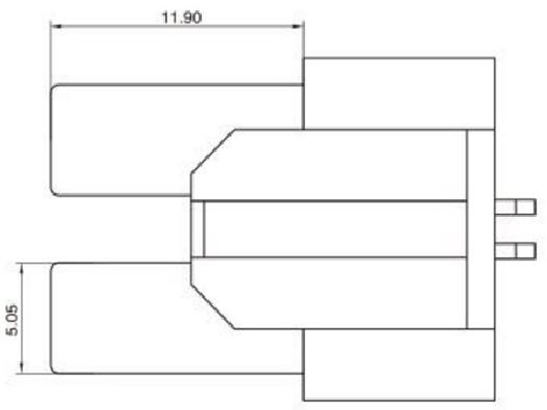

BF 80004-2Y(610599)
Products

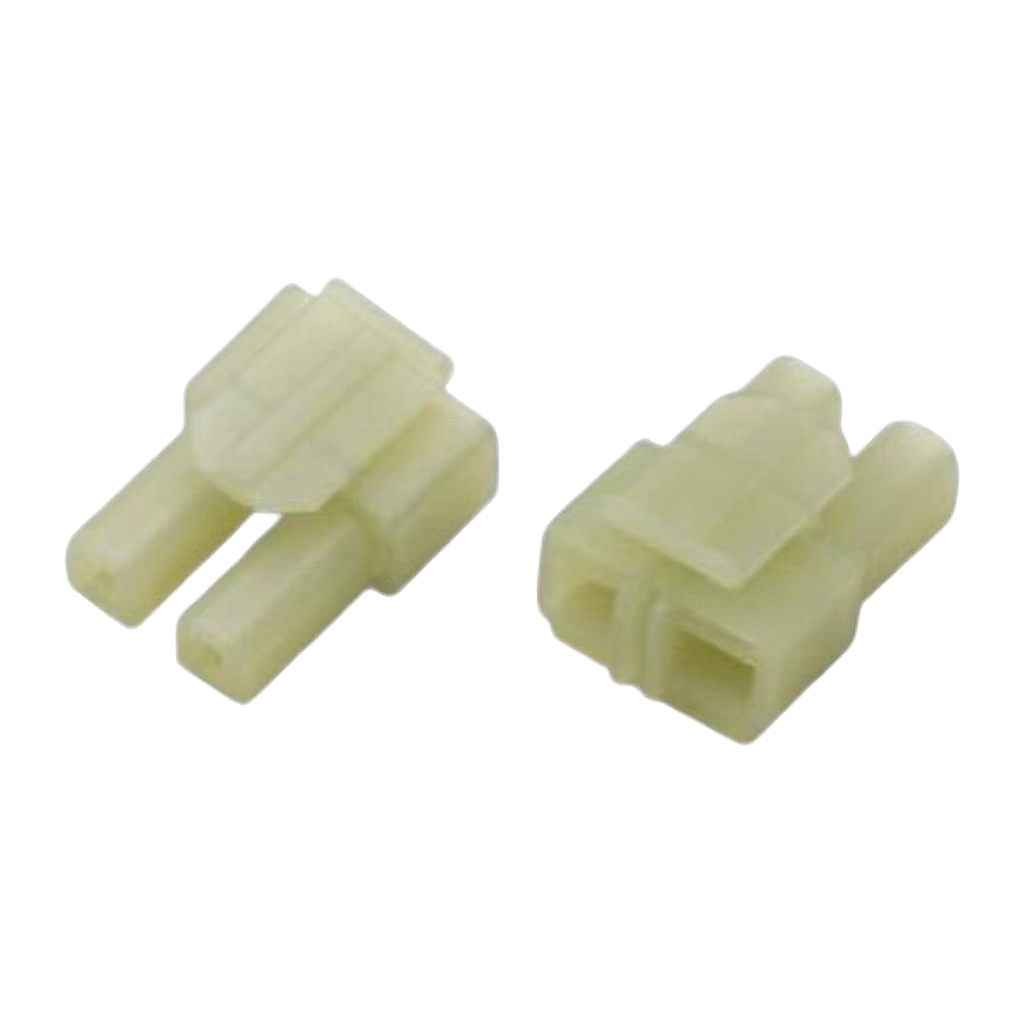

BF80004
Specifications
1、 Poles:2
2、 Current rating:15AAC/DC
3、 Voltage rating:500V AC/DC
4、Temperature range:-25℃ to +85℃
5、 Contact resistance:≤20mΩ
6、 Insulation resistance:≥1000MΩ
7、 Withstand voltage:1500V AC/minute
8、 Material:
Brass:Nylon66 UL94V-0
Terminal:Phos.Bronze Tin-Plated
