BF82001-HX2002-(Cy-x201 35108)

SPECIFICATIONS

Poles: 1、2、3

Applicablewires: AWG24#~18#

ApplicablePC board thickness: 1.6mm

Temperaturerange : -25 ·c~85°C

Voltagerating : 250V.Ac/Dc

Currentrating : 7 A

Contactresistance: ≤0.01Ω

Insulationresistance :≥1000MΩ

Withstandvoltage: 1500V.Ac/1 min

Material:

Housing : PA66 UL94V-2(0)

Wafer : PA66 UL94V-2(0)

Terminal : Phos.bronze Tin/plated

Product introduction

TERMINAL(Cy-X2Ol)

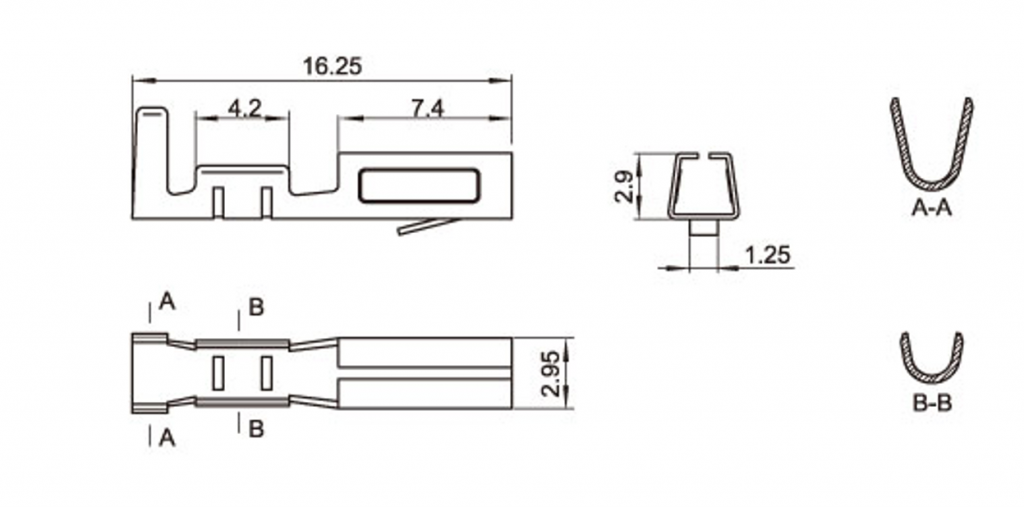

BF 82001-PTA (Cy-X201-02.1）

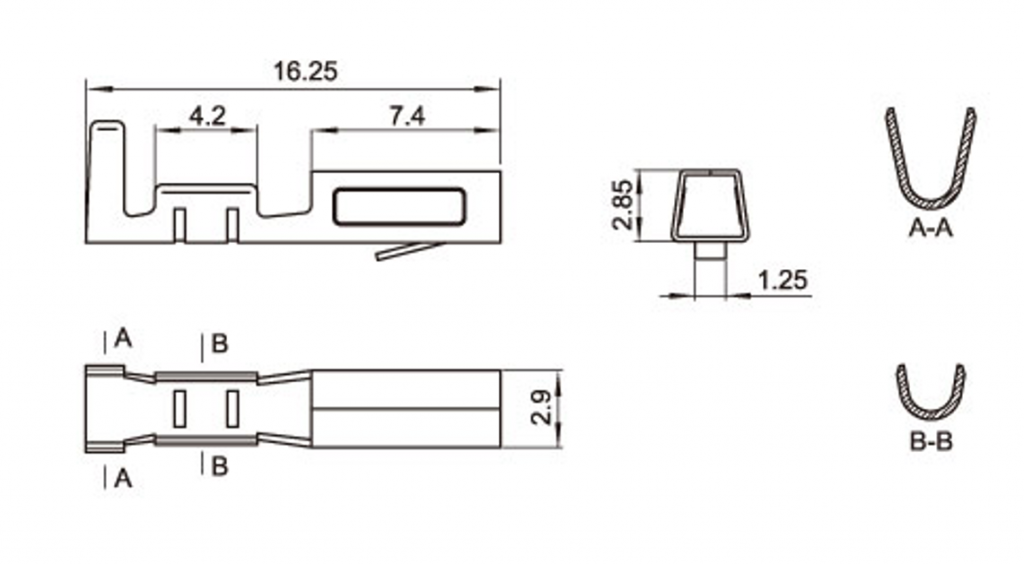

BF 82001-PTB(Cy-X201-φ2.3)

(Poles)

(Housing)

(Wafer)

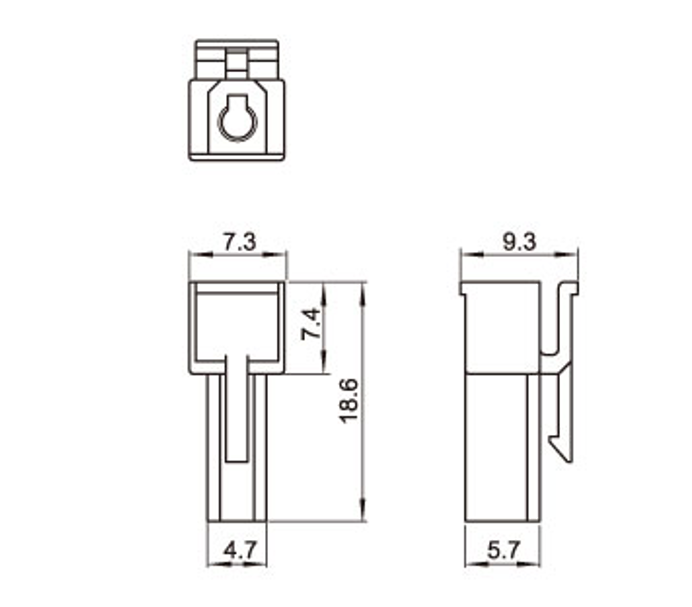

BF X82001-1Y (Cy-X201)

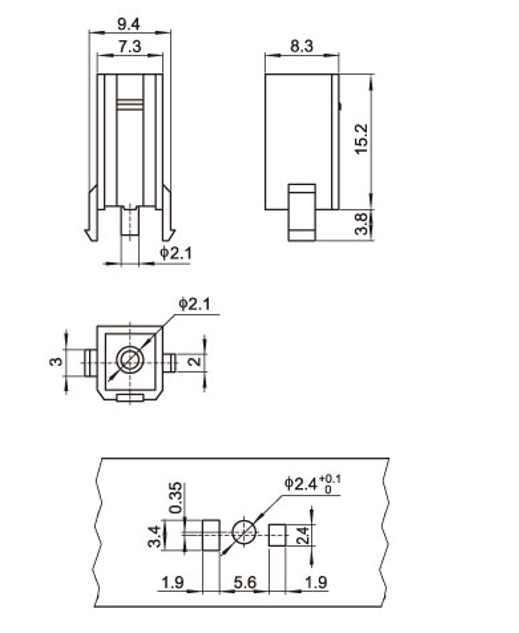

BF 82002-1A-φ2.1(Cy-X201)

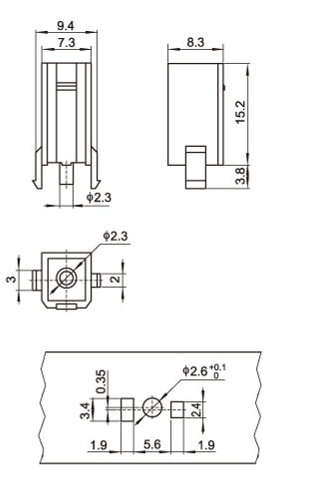

BF 82002-1A－φ2.3 (Cy-X2Ol))

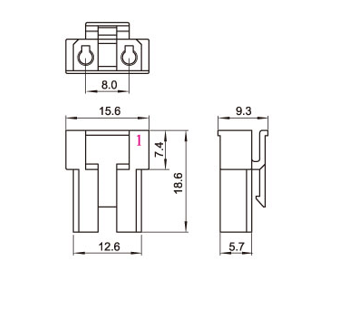

BF 82001-2Y(Cy-X201)

BF 82002-2A-ф2.1(Cy-X201)

BF 82002-2A-ф2.3(Cy-X201)

BF 82001-2Y(Cy-X201)

BF 82002-2V-ф2.1(Cy-X201)

BF 82002-2V-中2.3(Cy-X201)

BF 82001-3Y(Cy-X201)

BF 82002-3A-ф2.1(Cy-X201)

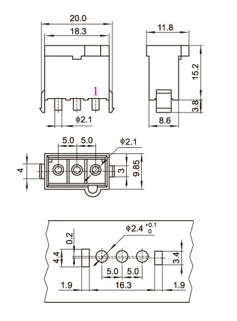

BF 82002-3A-ф2.3(Cy-X201)
