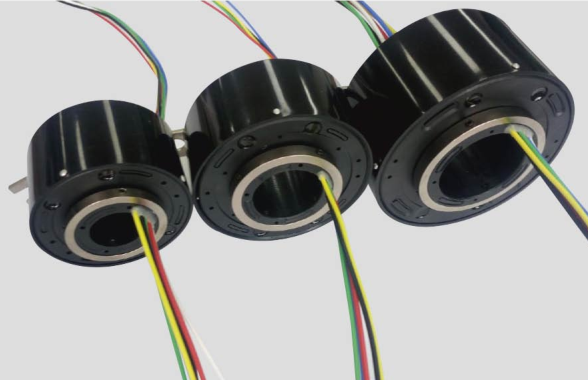

Model Selection Instructions
① BRFG: Refers to through-hold conductive slip ring
② 025:Refers to the slip ring’s rotor OD is 25.4mm(linch)
③ 6P:Refers to 6 power rings
④ 12S:Refers to 12 signal rings
PS:The addition is not part of the product number.Please take attention to the slip ring’s model and parameter requirement during the selecting.
For example:the ring number,current,voltage,lead length,operating speed,working temperature,and protection level,etc.

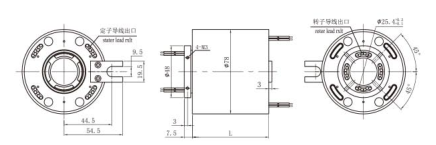

Product specification table
| Model | Rated Current | Rings | L(mm) | |
| P(10A、15A) | S(2A) | |||
| BRFG025-6P | 6 | 一 | 6 | 47 |
| BRFG025-12P | 12 | 一 | 12 | 71 |
| BRFG025-18P | 18 | 一 | 18 | 95 |
| BRFG025-24P | 24 | 一 | 24 | 19 |
| BRFG025-12S | 一 | 12 | 12 | 47 |
| BRFG025-24S | 一 | 24 | 24 | 71 |
| BRFG025-36S | 一 | 36 | 36 | 95 |
| BRFG025-48S | 一 | 48 | 48 | 119 |
| BRFG025-6P/12S | 6 | 12 | 18 | 71 |
| BRFG025-6P/24S | 6 | 24 | 30 | 95 |
| BRFG025-6P/36S | 6 | 36 | 42 | 119 |
| BRFG025-12P/12S | 12 | 12 | 24 | 95 |
| BRFG025-12P/24S | 12 | 24 | 36 | 119 |
| BRFG025-18P/12S | 18 | 12 | 30 | 119 |
Product technical parameters
| Model | Rated Curent | |
| P(10A、15A) | S(2A) | |
| Rated Voltage | 0~380VAC | 0~240VAC/VDC |
| Insulation Resistance | ≥1000MΩ/500VDC | ≥500MΩ/500VDC |
| Dielectric Strength | 1000VAC@50Hz,60S | 500VAC@50Hz,60S |
| Electrical Noise | ≤10mΩ | |
| Lsad Size | AWG14#,AWG16# | AWG26# |
| Lead Length | 500mm Standard 500mm | |
| Housing Material | Engineering Plastics or Metal online | |
| Contact Material | Preciousmetals | |
| Operating Speed | 0~500rpm | |
| Working Temperature | -20℃~+80℃ | |
| Operating Humidity | 60%RH or Higher | |
| Torque | 6-ring product is 0.1Nm, add 0.03Nm for each additional 6 rings | |
| Protection Level | IP51 or Higher | |
