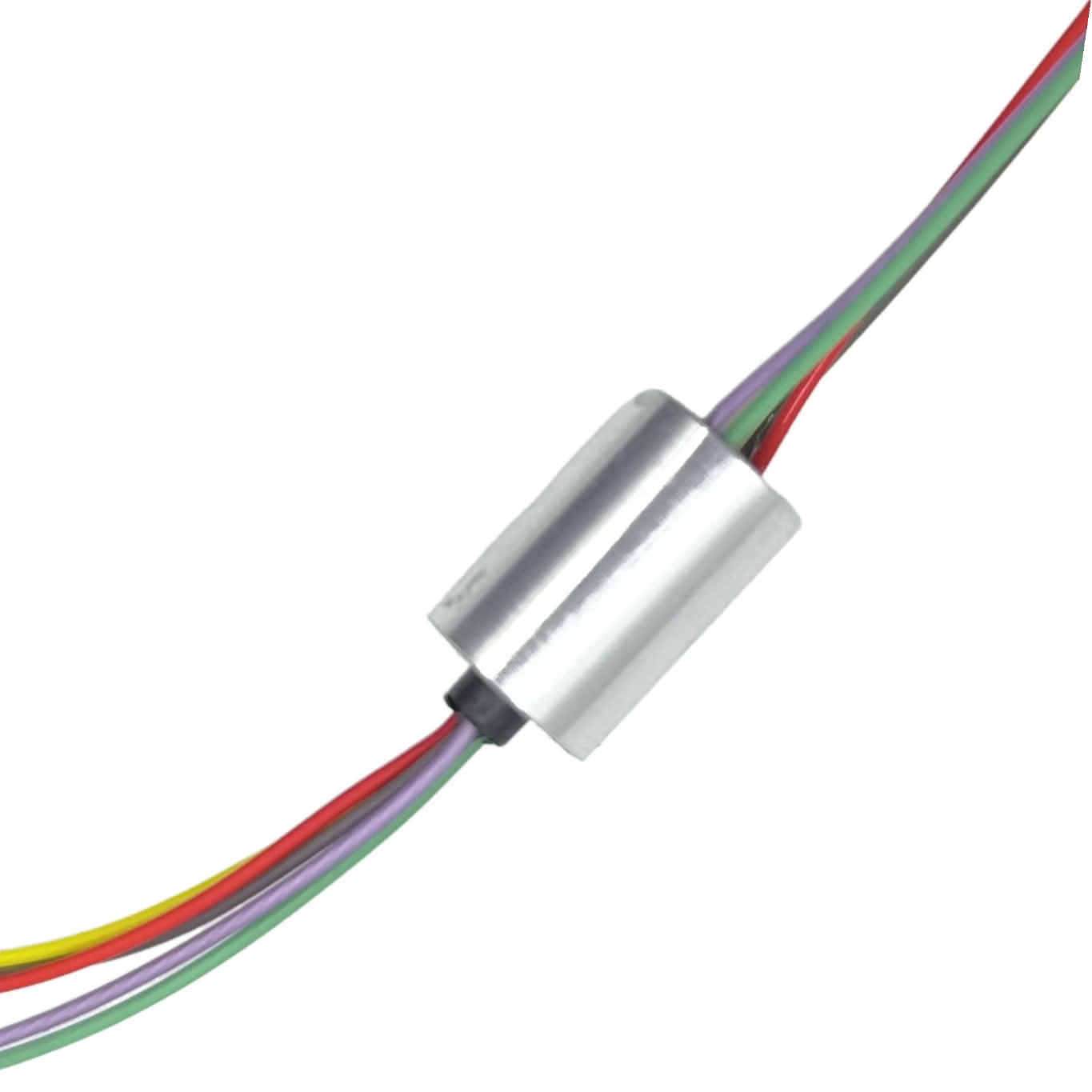

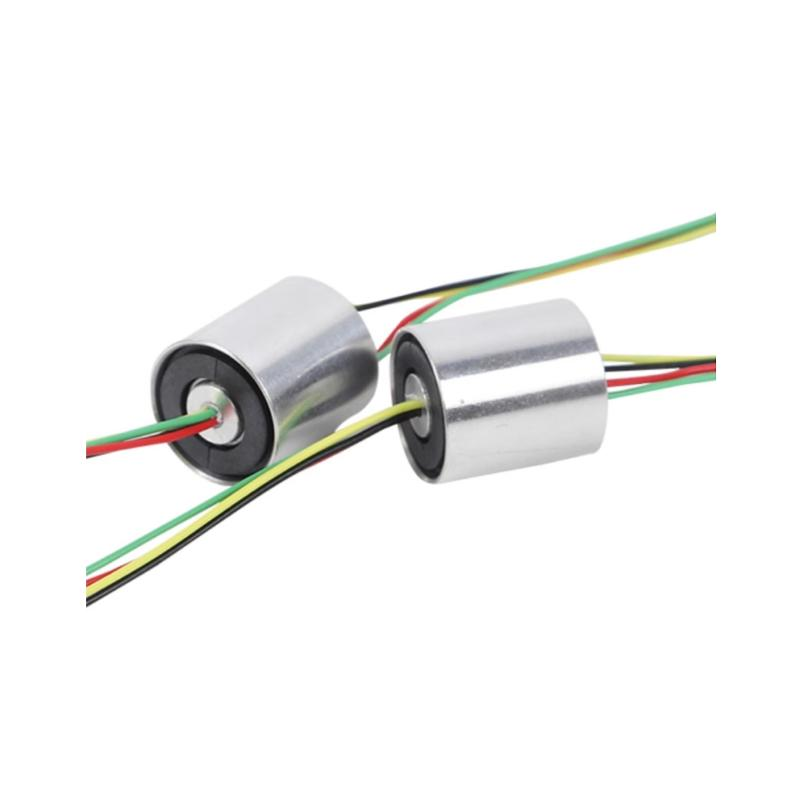

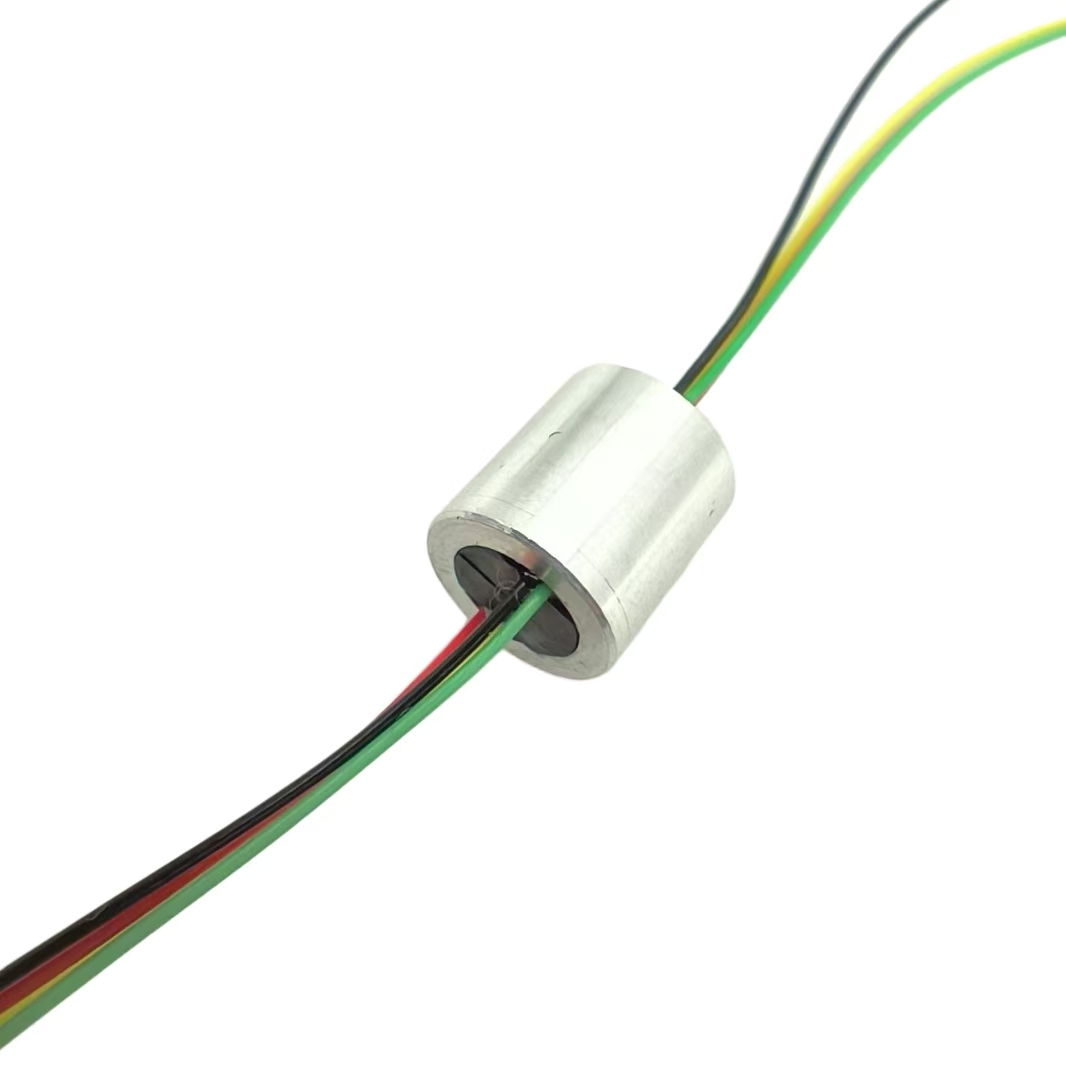

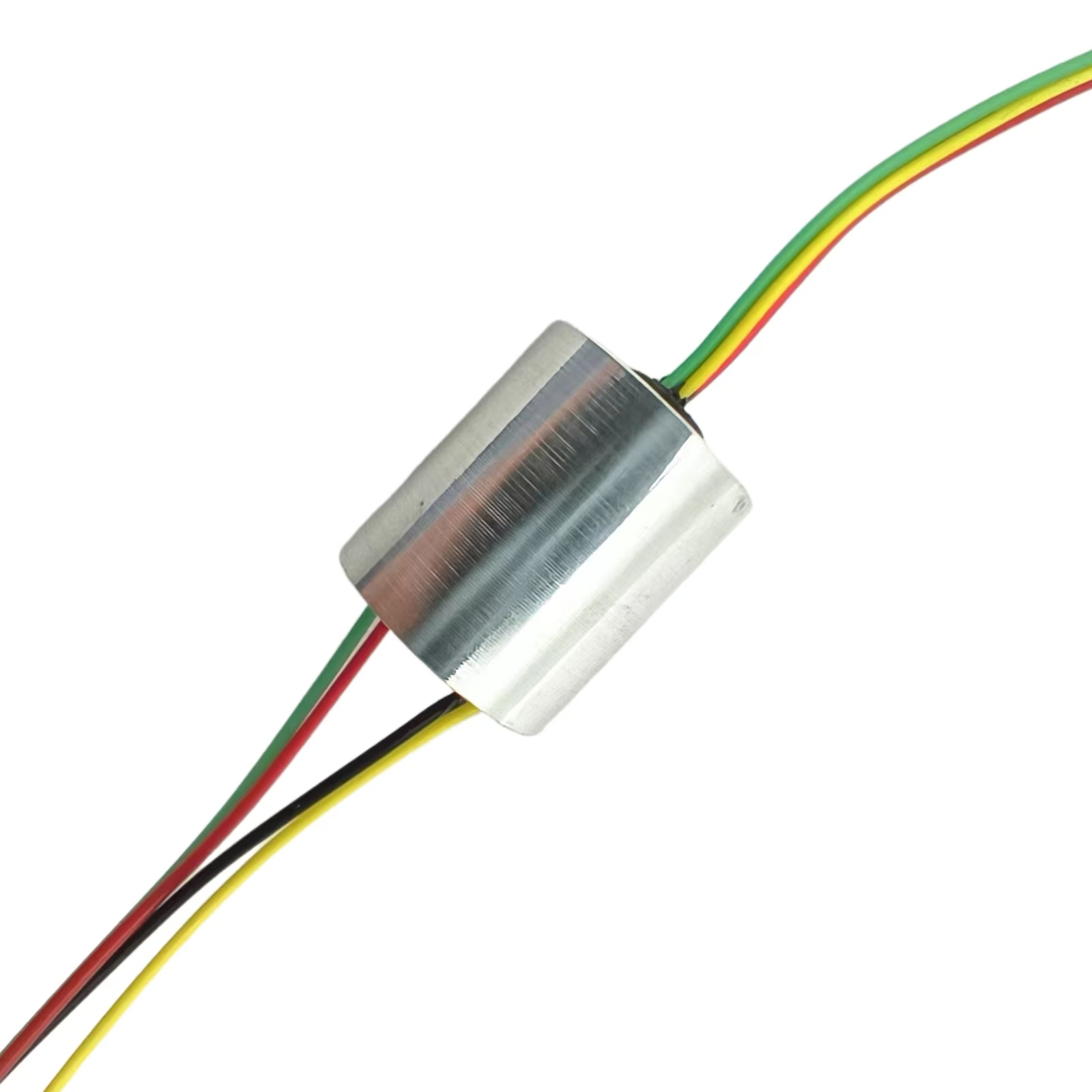

Micro slip rings are precision electrical components that enable the transmission of electrical energy and signals under rotating conditions. They ingeniously solve the problem of electrical connection between rotating and stationary bodies, integrating complex conductive paths within a limited space. With a compact structure and an ingenious design, they typically consist of core components such as rotors, stators, brushes, and conductive rings. The rotor is connected to the rotating equipment, while the stator remains relatively stationary. The brushes are in close contact with the conductive rings to ensure the stable transmission of current and signals during continuous rotation.
Key Features and Benefits
- Small and Lightweight
Their miniaturized design gives them a unique advantage in equipment with stringent space requirements. They can be easily installed in small motors, pan-tilt heads, robotic joints, and other confined spaces without occupying excessive volume and weight, and without adversely affecting the overall layout and operation of the equipment. - High Reliability
High-quality conductive materials and advanced manufacturing processes are employed, ensuring excellent contact performance between the brushes and the conductive rings. During long-term rotational work, they can effectively reduce wear and sparking phenomena, ensuring a stable electrical connection, reducing the incidence of failures, and enhancing the reliability and stability of the equipment operation. - Multi-channel Transmission
They can simultaneously achieve the transmission of multiple channels of current and signals. For example, they can transmit various types of electrical signals such as power supplies, control signals, and sensor signals simultaneously on a single rotating shaft, meeting the diverse needs of complex equipment systems. - Low Torque and Low Noise
The internal structure has been optimized in the design, resulting in low friction and torque during rotation. The noise generated during the working process is extremely low, without interfering with the surrounding environment and the accuracy of the equipment. This makes them particularly suitable for equipment that is sensitive to noise and requires high-precision operation. - Wide Operating Speed Range
They possess excellent adaptability to rotational speeds. Whether it is equipment with low-speed rotation or high-speed rotating motors, micro slip rings can work normally, ensuring the stable transmission of electrical energy and signals.

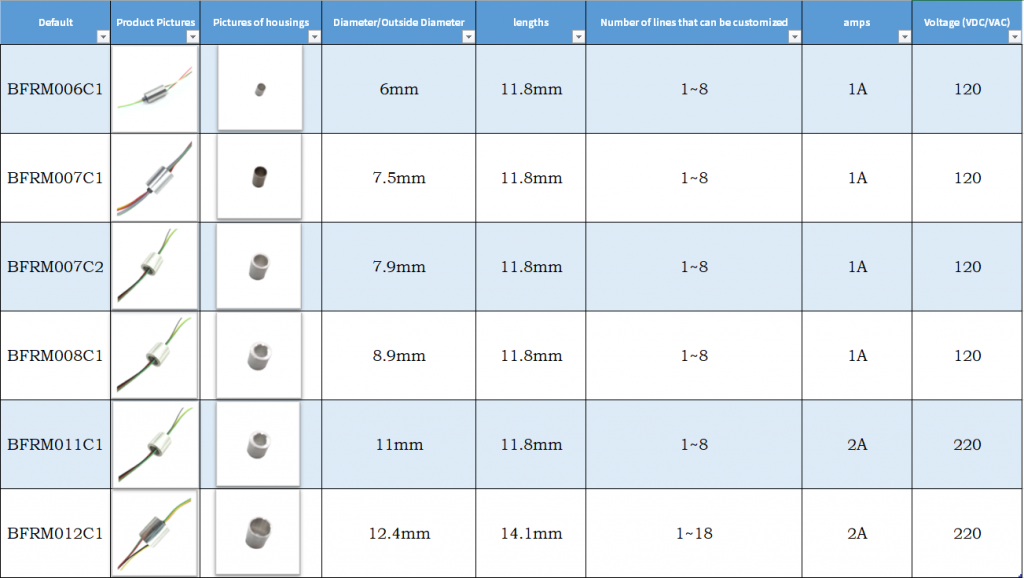

BRF Miniature Conductive Slip Rings Specification
Applications
- Aeronautics and Astronautics Field
They are widely used in the rotating parts of aeronautical and astronautical equipment, such as the antenna rotation mechanism of satellites and the connection of rotating sensors in the flight control system of aircraft. These application scenarios have extremely high requirements for the reliability, space occupation, and weight of the equipment. Micro slip rings can meet these requirements, ensuring the stable transmission of signals and power and the smooth progress of aeronautical and astronautical missions. - Medical Equipment Field
They play an important role in medical imaging equipment (such as the rotating parts of CT scanners) and minimally invasive surgical robots. They can ensure that the power supply and control signal transmission are not affected during the rotation of the equipment, thereby ensuring the accuracy and safety of medical diagnosis and treatment. - Industrial Automation Field
They are used in the rotating joints of various industrial automation equipment, such as the rotating worktables in automated production lines and the joints of robotic arms. They achieve the transmission of motor drive power and control signals, ensuring the continuity and precision of the automated production process and improving production efficiency. - Security Monitoring Field
In pan-tilt cameras and other equipment, micro slip rings can ensure the stable transmission of video signals and power when the pan-tilt rotates, enabling the camera to rotate flexibly in all directions, achieving seamless coverage of the monitored area and ensuring the normal operation of the security monitoring system. - Consumer Electronics Field
In some high-end rotatable consumer electronic products, such as cameras with rotating screens or rotating functions, micro slip rings provide a stable electrical connection for their rotating parts, enhancing the user experience.
