Products

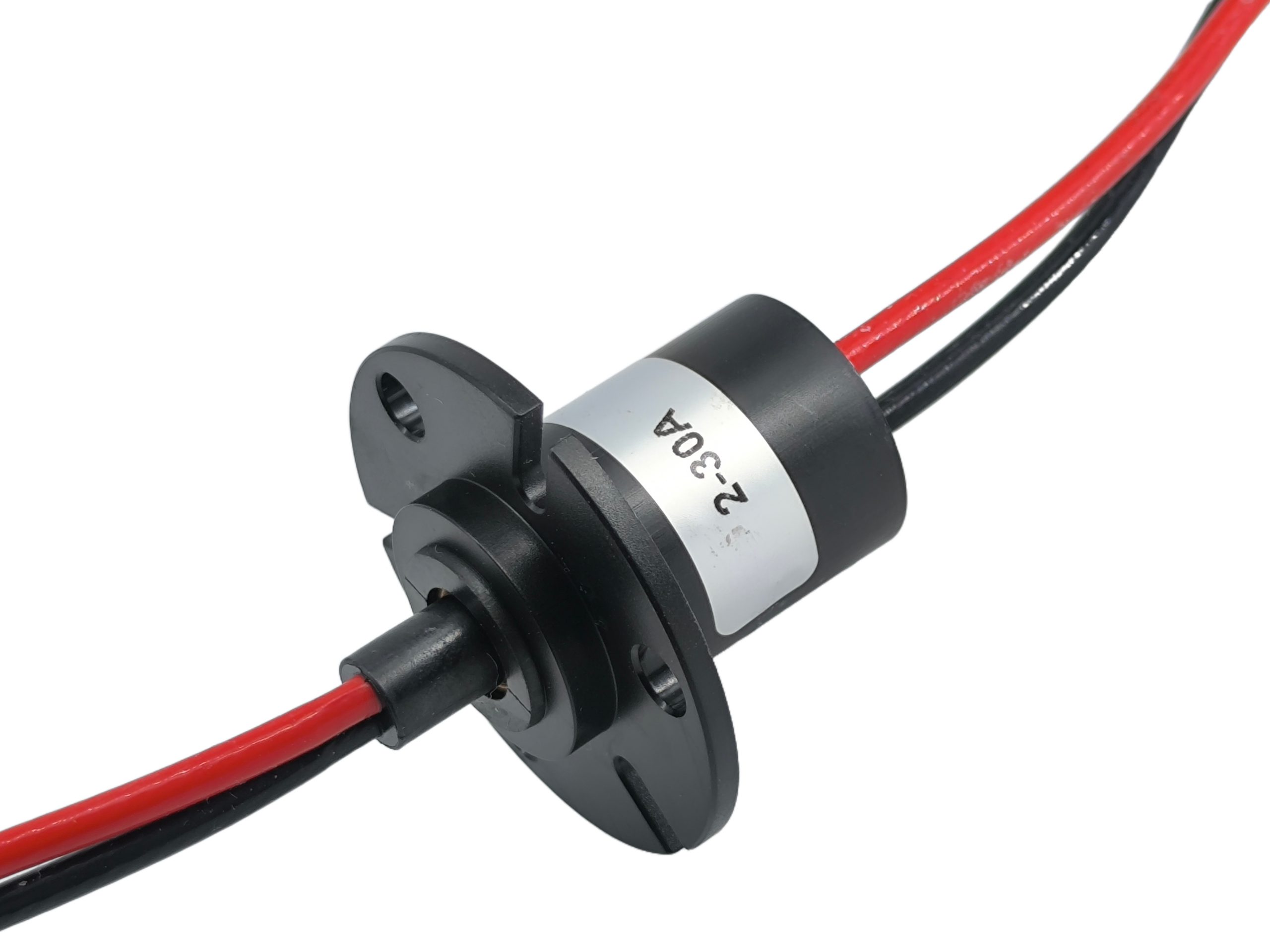

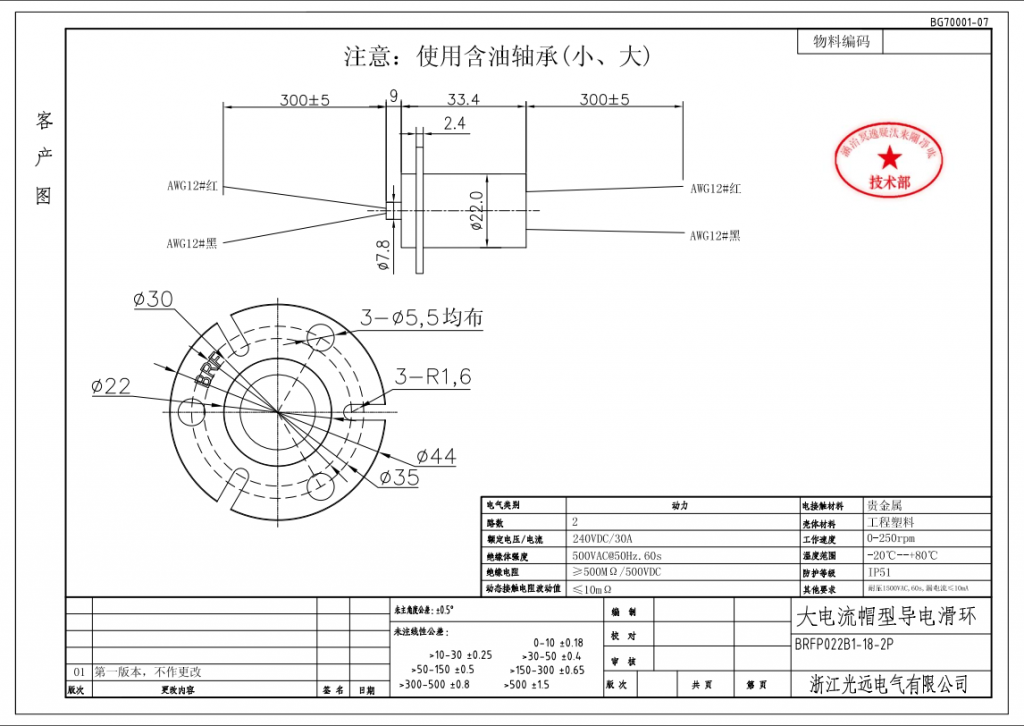

BRFP022B1-18-2P 30A motor slip ring

Electrical category	power
Rated voltage	240VDC/10A
Insulation strength	500VDC@50Hz.60s
Insulation resistance	≥500mΩ/500VDC
Dynamic contact resistance fluctuation value	≤10mΩ
electrical contact material	precious metals
shell material	engineering plastics
operating speed	0-250rpm
temperature range	-20℃—+80℃
protection level	IP51
other requirements	Voltage resistance：1800VAC@50Hz.5s,≤10mA

Product introduction
