Specifications
- 1、Poles:41 to 51
- 2、Current rating:0.7AAC/DC
- 3、Voltage rating:50V AC/DC
- 4、Temperature range:-40℃ to +85℃
- 5、Contact resistance: <30m2(Initial)；<60m2(Final)
- 6、Insulation resistance:>100MQ
- 7、Withstand voltage:500VAC/minute
- 8、Applicable wires:
- FFC Gold Finger+Single side line+Reinforcement plate=0.28~0.32mm
- 9、Material:
- Housing:LCP UL94V-0
- Shield:Stainless steel
- Lock:Stainless steel

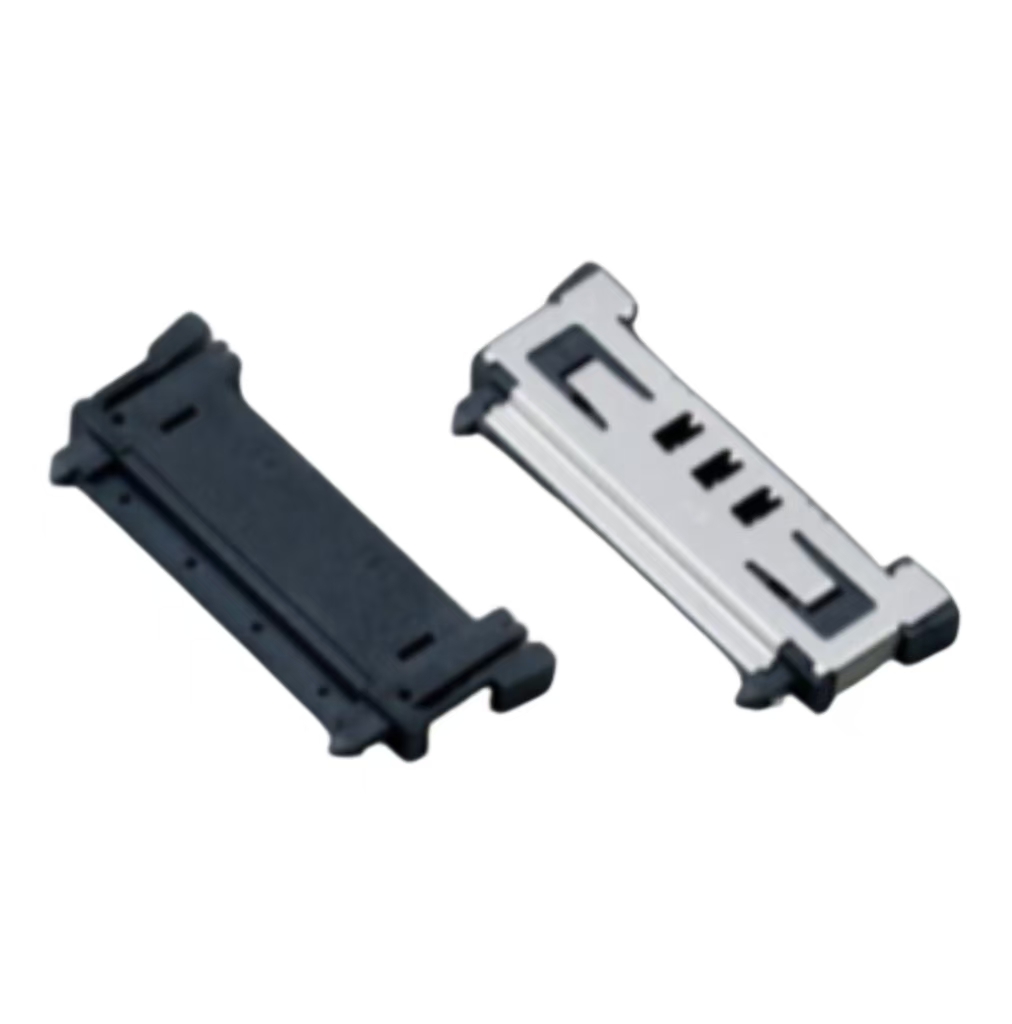

BF 05000-P(0.5pitch LVDS CONNECTOR）

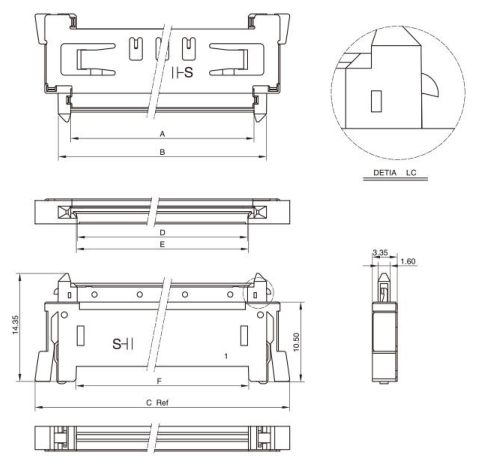

BF 05000-P

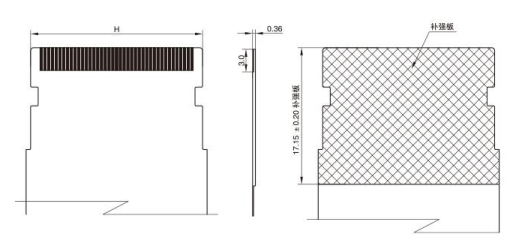

BF 05000-P(FFC)
| DIM PIN | A | B | C | D | E | F | G | H |
| 41 | 24.30 | 27.60 | 33.30 | 22.60 | 22.80 | 22.90 | 20.00 | 22.80 |
| 51 | 29.30 | 32.60 | 38.30 | 27.60 | 27.80 | 27.90 | 25.00 | 27.80 |
