Specifications
- Poles:6 to 12
- Current rating:0.5AAC/DC
- Voltage rating:50V AC/DC
- Temperature range:-25℃ to +85℃
- Contact resistance:<30mΩ
- Insulation resistance:>500M2
- Withstand voltage:500V AC/minute
- Applicable wires:

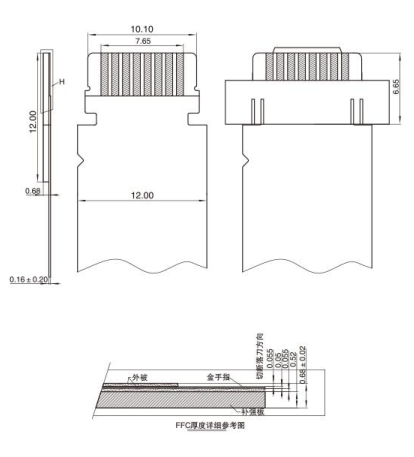

- FFC Gold Finger+Single side line+Reinforcement plate=0.605~0.645mm
- Material:
- Housing:Nylon66 UL94V-0
BF 10013-Y(FFC1.0 )
BF 10013-Y(FFC1.0)

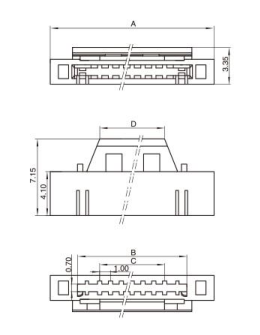

| Poles | Part.No. | Dimensions mm | |||
| A | B | C | D | ||
| 6 | BF10013-6P | 13.20 | 8.15 | 4.00 | 4.00 |
| 8 | BF10013-8P | 15.20 | 10.15 | 6.00 | 6.00 |
| 10 | BF10013-10P | 17.20 | 12.15 | 8.00 | 8.00 |
| 12 | BF10013-12P | 19.20 | 14.15 | 10.00 | 10.00 |
