Specifications
- Poles:ted
- Poles:6
- Current rating:1.0AAC/DC
- Voltage rating:125VAC/DC
- Temperature range:-25℃ to +85℃
- Contact resistance:<20mΩ
- Insulation resistance:>100MΩ
- Withstand voltage:500V AC/minute
- Applicable wires:AWG#32 to #28
- Housing:Nylon66 UL94V-0
- Terminal:Phos.Bronze Tin-Plated
BF 10008-T(C114)/SH 10016-T(C114)
| Part No. | Wire Range | Insulation O.D | Materia | Finish |
| BF10008-T | AWG#32-#28 | 0.80mm(max) | Phosphor bronze | Tin-plated |

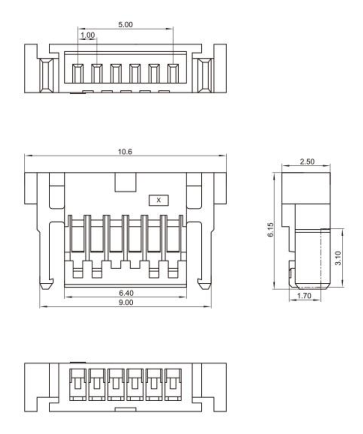

BF 10016-6Y(SHJP-06V)

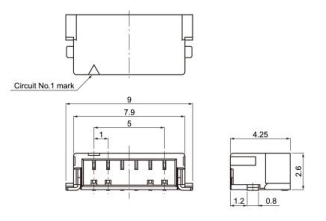

BF 10016-6AB

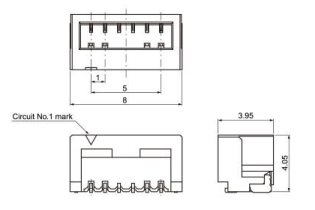

BF 10016-6AWB

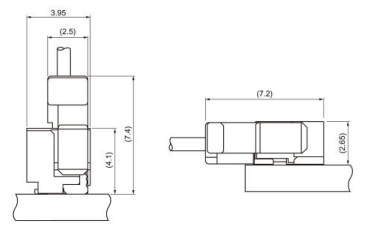

Installation Dimensions(90°) /(180°)
