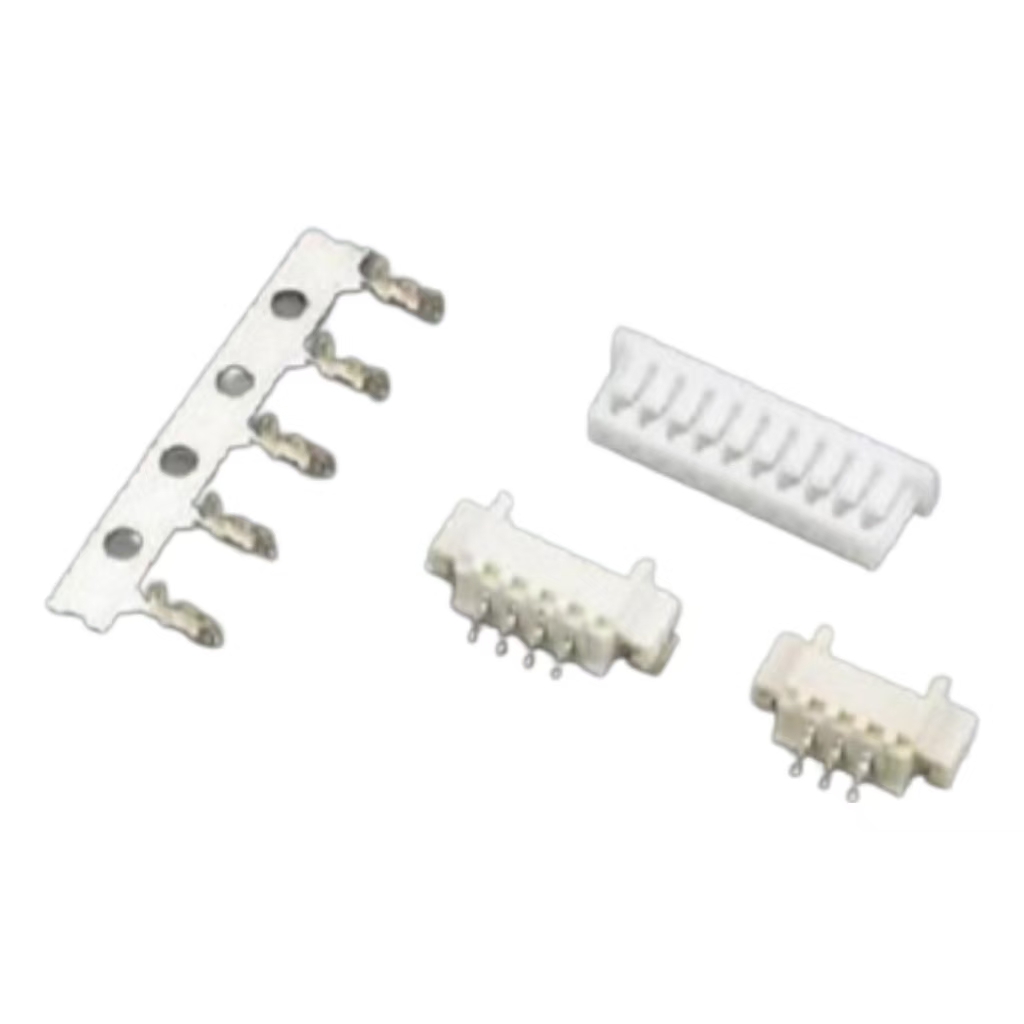

Specifications
- Poles
- Poles:2to12
- Current rating:1.0A AC/DC
- Voltage rating:50V AC/DC
- Temperature range:-25C to +85C
- Contact resistance: <20mΩ
- Insulation resistance:>500MΩ
- Withstand voltage:500V AC/minute
- Applicable wire:AWG#32to #28
- Applicable PC board thickness:0.8mm
- Material:
- Housing:Nylon66 UL94 V-0
- Terminal:Phos.Bronze Tin-Plated; Wafer:
- Pin: Phos.Bronze
- Tin-Plated Base:Nylon 66 UL94 V-0

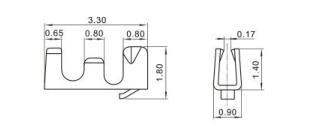

BF 12501-T/SH 12500-T(51021)
| Part No. | Wire Range | Insulation O.D | Materia | Finish |
| BF 12500-T | AWG#32-#28 | 0.80mm(max) | Phosphor bronze | Tin-plated |
BF 12501-Y/SH 12500-Y(51021)
BF 12500-A

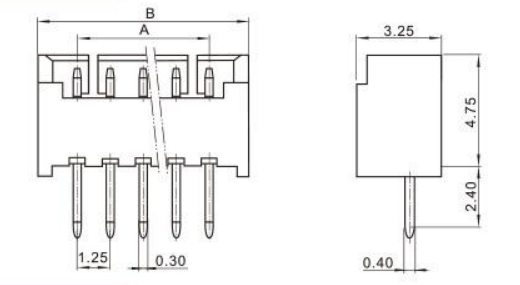

BF 12500-AW

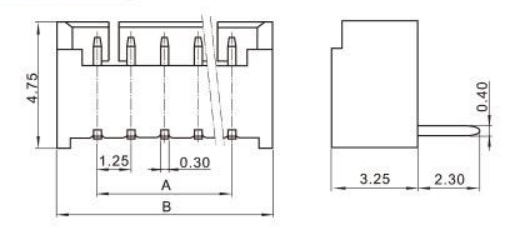

Installation Dimensions(90°)
Installation Dimensions(90°)

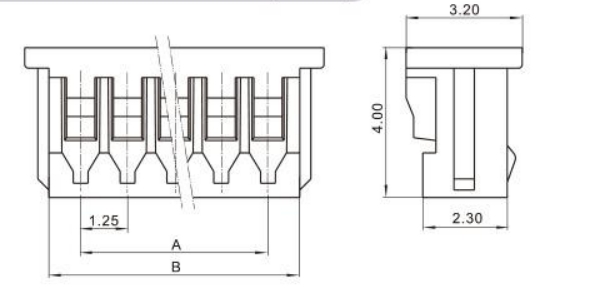

HOUSING
| Poles | Part No. | Dimensions mm | |
| A | B | ||
| 2 | BF12500-2Y | 1.25 | 3.00 |
| 3 | 121 | 2.50 | 4.25 |
| 4 | BF12500-4Y | 3.75 | 5.50 |
| 5 | BF12500-5Y | 5.00 | 6.75 |
| 6 | BF12500-6Y | 6.25 | 8.00 |
| 7 | BF12500-7Y | 7.50 | 9.25 |
| 8 | BF12500-8Y | 8.75 | 10.50 |
| 9 | BF12500-9Y | 10.00 | 11.75 |
| 10 | BF12500-10Y | 11.25 | 13.00 |
| 11 | BF12500-11Y | 12.50 | 14.25 |
| 12 | BF12500-12Y | 13.75 | 15.50 |
WAFER
| Poles | Part No | Dimensions mm | ||
| A | B | |||
| 2 | BF12500-2A | BF12500-2AW | 1.25 | 4.35 |
| 3 | BF12500-3A | BF12500-3AW | 2.50 | 5.60 |
| 4 | BF12500-4A | BF12500-4AW | 3.75 | 6.85 |
| 5 | BF12500-5A | BF12500-5AW | 5.00 | 8.10 |
| 6 | BF12500-6A | BF12500-6AW | 6.25 | 9.35 |
| 7 | BF12500-7A | BF12500-7AW | 7.50 | 10.60 |
| 8 | BF12500-8A | BF12500-8AW | 8.75 | 11.85 |
| 9 | BF12500-9A | BF12500-9AW | 10.00 | 13.10 |
| 10 | BF12500-10A | BF12500-10AW | 11.25 | 14.35 |
| 11 | BF12500-11A | BF12500-11AW | 12.50 | 15.60 |
| 12 | BF12500-12A | BF12500-12AW | 13.75 | 16.85 |
