BF12506(51146) Series Connector

Specifications

• Poles:2to 30
• Current rating:1.0A AC/DC
• Voltage rating:125VAC/DC
• Temperature range:-25C to+85C
• Contact resistance: <20mΩ
• Insulation resistance: >500MQ
• Withstand voltage:500V AC/minute
• Applicable wire:AWG#32to#28
• Applicable PC board thickness:1.6mm
• 1Material:
• Housing:Nylon66 UL94 V-0
• Terminal:Phos.Bronze Tin-Plated
• Wafer:
• Soldertabs: Brass Tin-Plated
• Pin: Phos.Bronze Tin-Plated
• Base:Nylon 6T UL94V-0

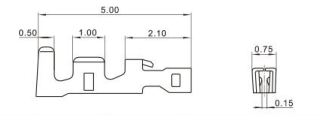

BF 12506-T

Part No.	Wire Range	Insulation O.D	Materia	Finish
BF 12506-T	AWG#32-#28	0.80mm(max)	Phosphor bronze	Tin-plated

BF 12506-Y

BF 12506-AW

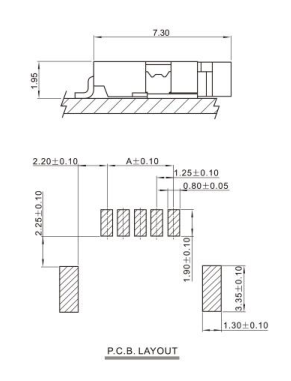

Installation Dimensions(90°)

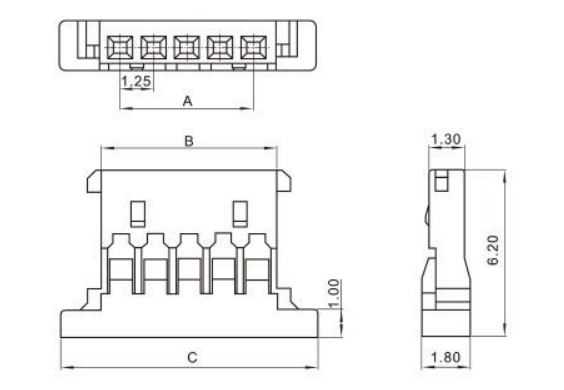

HOUSING

Poles	Part No	Dimensions mm
		A	B	C
2	BF12506-2Y	1.25	2.72	5.72
3	BF12506-3Y	2.50	3.97	6.97
4	BF12506-4Y	3.75	5.22	8.22
5	BF12506-5Y	5.00	6.47	9.47
6	BF12506-6Y	6.25	7.72	10.72
7	BF12506-7Y	7.50	8.97	11.97
8	BF12506-8Y	8.75	10.22	13.22
9	BF12506-9Y	10.00	11.47	14.47
10	BF12506-10Y	11.25	12.72	15.72
11	BF12506-11Y	12.50	13.97	16.97
12	BF12506-12Y	13.75	15.22	18.22
13	BF12506-13Y	15.00	16.47	19.47
14	BF12506-14Y	16.25	17.72	20.72
15	BF12506-15Y	17.50	18.97	21.97
20	BF12506-20Y	23.75	25.22	28.22
25	BF12506-25Y	30.00	31.47	34.47
30	BF12506. Y	36.25	37.72	40.72

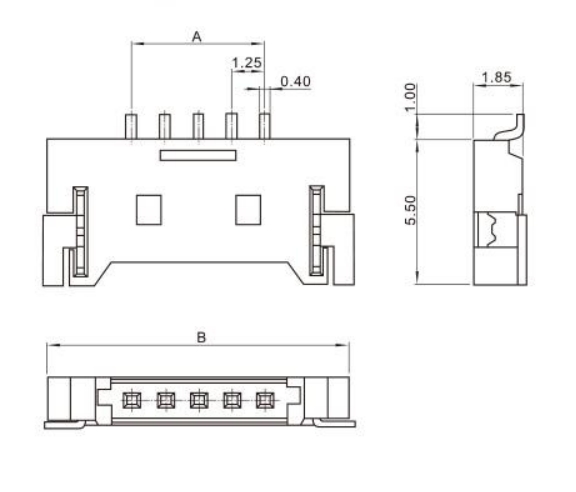

WAFER

poles	Part No	Dimensions mm
		A	B
2	BF12506-2AW	1.25	7.65
3	BF12506-3AW	2.50	8.90
4	BF12506-4AW	3.75	10.15
5	BF12506-5AW	5.00	11.40
6	BF12506-6AW	6.25	12.65
7	BF12506-7AW	7.50	13.90
8	BF12506-8AW	8.75	15.15
9	BF12506-9AW	10.00	16.40
10	BF12506-10AW	11.25	17.65
11	BF12506-11AW	12.50	18.90
12	BF12506-12AW	13.75	20.15
13	BF12506-13AW	15.00	21.40
14	BF12506-14AW	16.25	22.65
15	BF12506-15AW	17.50	23.90
20	BF12506-20AW	23.75	30.15
25	BF12506-25AW	30.00	36.40
30	BF12506-30AW	36.25	42.65
